Step 2 : Hardware Setup
Required
Parts
-
Pre-Assembled PSLED01 | Modular LED Panel1x -

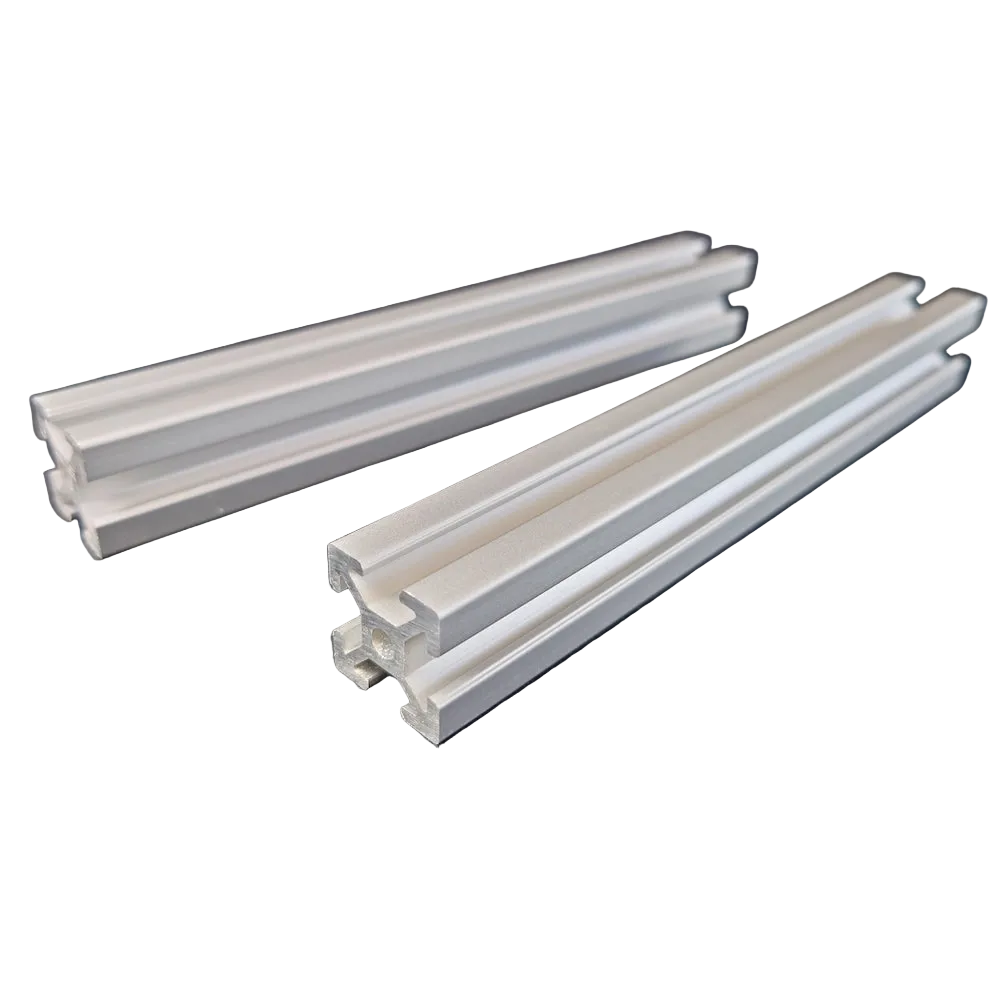

A02 : 138m 2020 Extruded Aluminium4x -

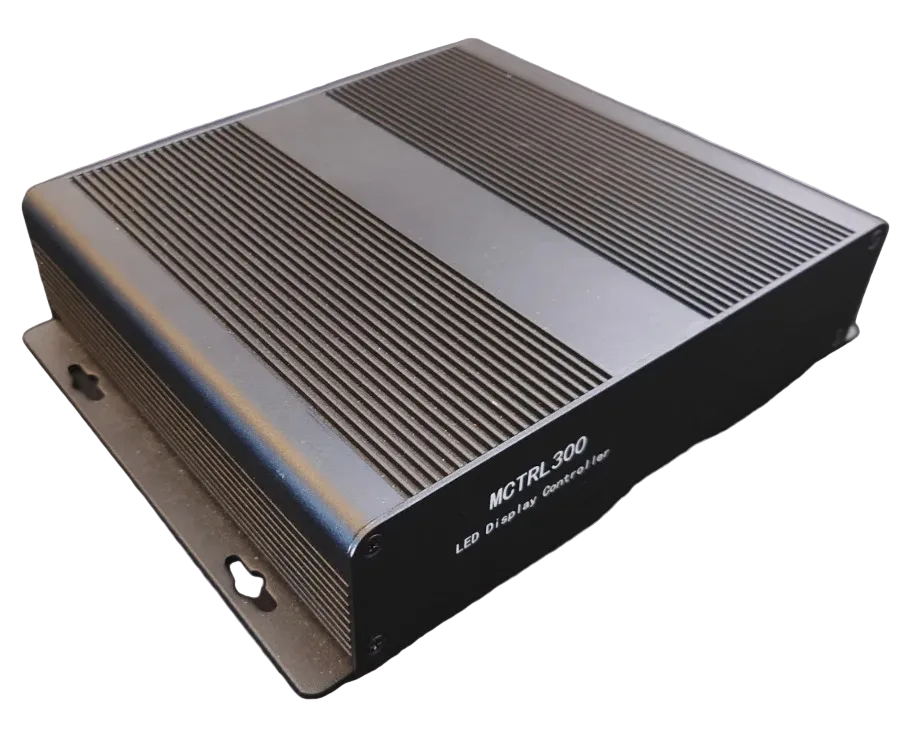

MCTRL300 Sending Card | Novastar1x -
A01 : L-Bracket | 2020 Hardware8x -

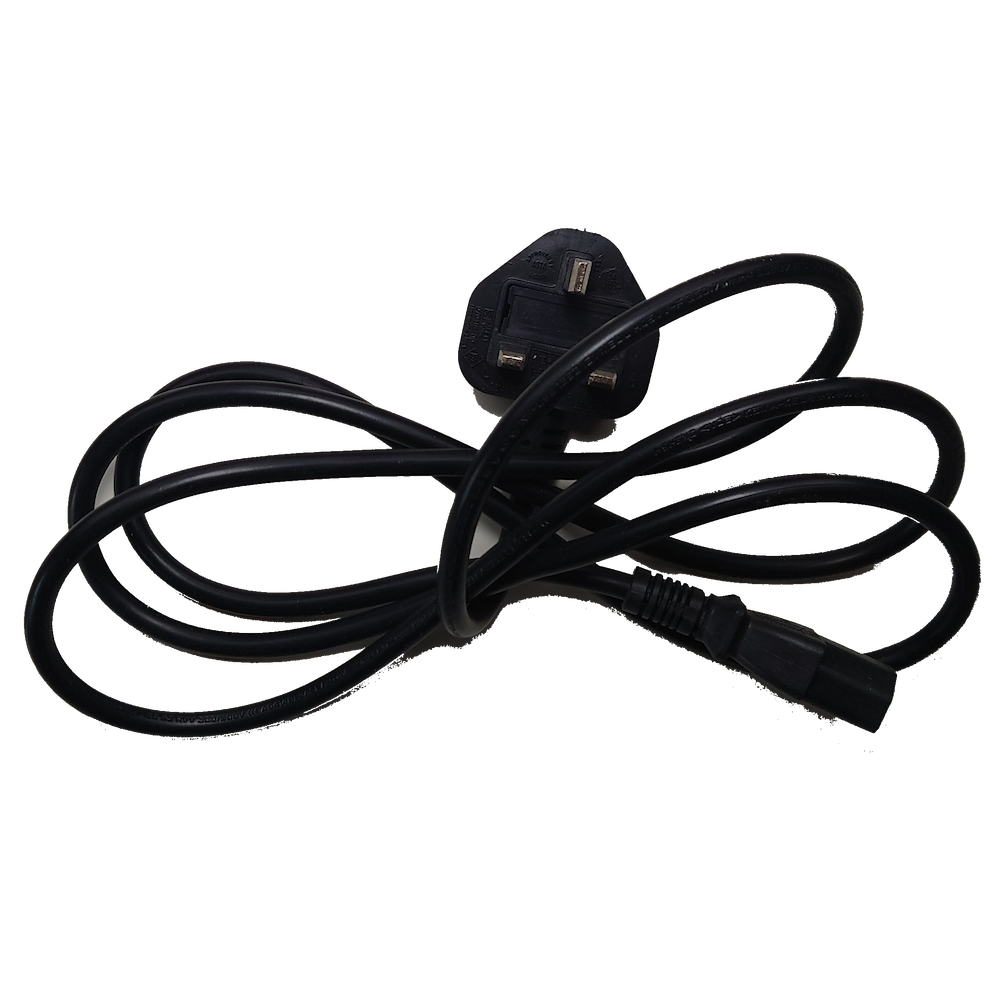

A04 : 1m C14 Male to UK Plug Mains Cable1x -
A05 : 500mm RJ45 Network Cable1x -
A06 : USB-A to USB-B cable1x -
B01 : Computer Running Windows1x
Tools
-
ScrewdriverTorx - T8A Torx bit or Hex Key will work here -
ScrewdriverPhillips Head
Instructions
1 - Remove the top plate and slide 4x L-brackets down runner as shown
Secure the top plate once the L-brackets are in the runner
2 - Attach the feet to the legs
Insert and align the L-brackets as shown (see image)
Attach the leg to each foot
Ensure the legs are both attached in the same place along their feet and tighten the L-brackets
Add the orange silicone grip insert to the bottom of each foot section
3 - Attach the legs to the panel
!
Ensure everything is tightened, secure, and stable before moving on
!
Align the L-brackets with the legs so the feet are perpendicular / at 90° to the panel
Position the legs evenly across the frame side to ensure the panel is stable
Tighten the L-brackets to the panel and legs
4 - Rotate the LED modules in the frame
!
Ensure the panel not plugged to the mains power before removing any modules or starting work
!
Rotating the modules 90° as shown
1 / 1
5 - Connect everything up!

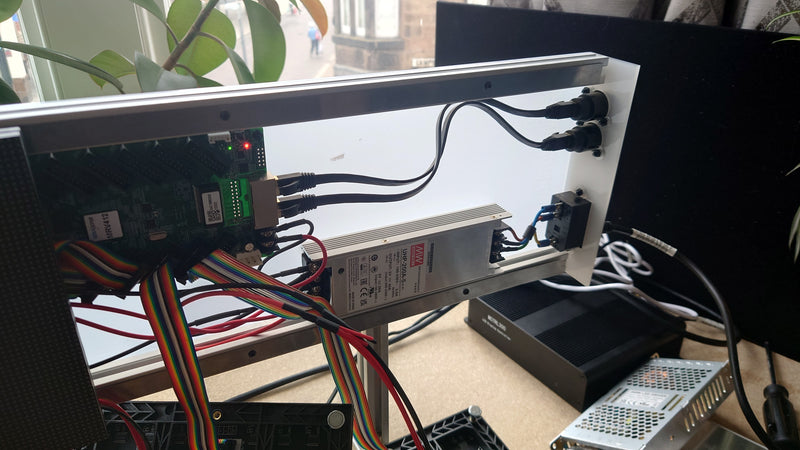

As shown in the diagram, make the following connections:
- MCTRL300 Sending Card RJ45 > either PSLED01 RJ45 port
- MCTRL300 Sending Card USB B > Computer USB A
- Computer HDMI > MCTRL300 Sending Card DVi
- Mains power > PSLED01
The USB connection between the MCTR300 and computer is for setup only, once this has been done the USB is only required when making changes to the screen configuration.
