Step 1 : Preparation
Check you have all the parts required against the Bill Of Materials before starting the build
You can buy a full kit to follow along with this tutorial from the PSLED01 Modular LED Panel Collection
Subscribe to our mailing list below to get sent the free PSLED01 Data Pack that supports this tutorial
Bill Of Materials
Qty
Code
Part
2
A01
2020 Extruded Aluminium - Tapped Ends
- 960mm
2
A02
2020 Extruded Aluminium
- 152mm
1
A03
Pixelgrinder Acrylic Plates | PSLED01
- Back plate
2
A04
Pixelgrinder Acrylic Plates | PSLED01
- Base plate
1
A05
Pixelgrinder Acrylic Plates | PSLED01
- Top plate
2
A06

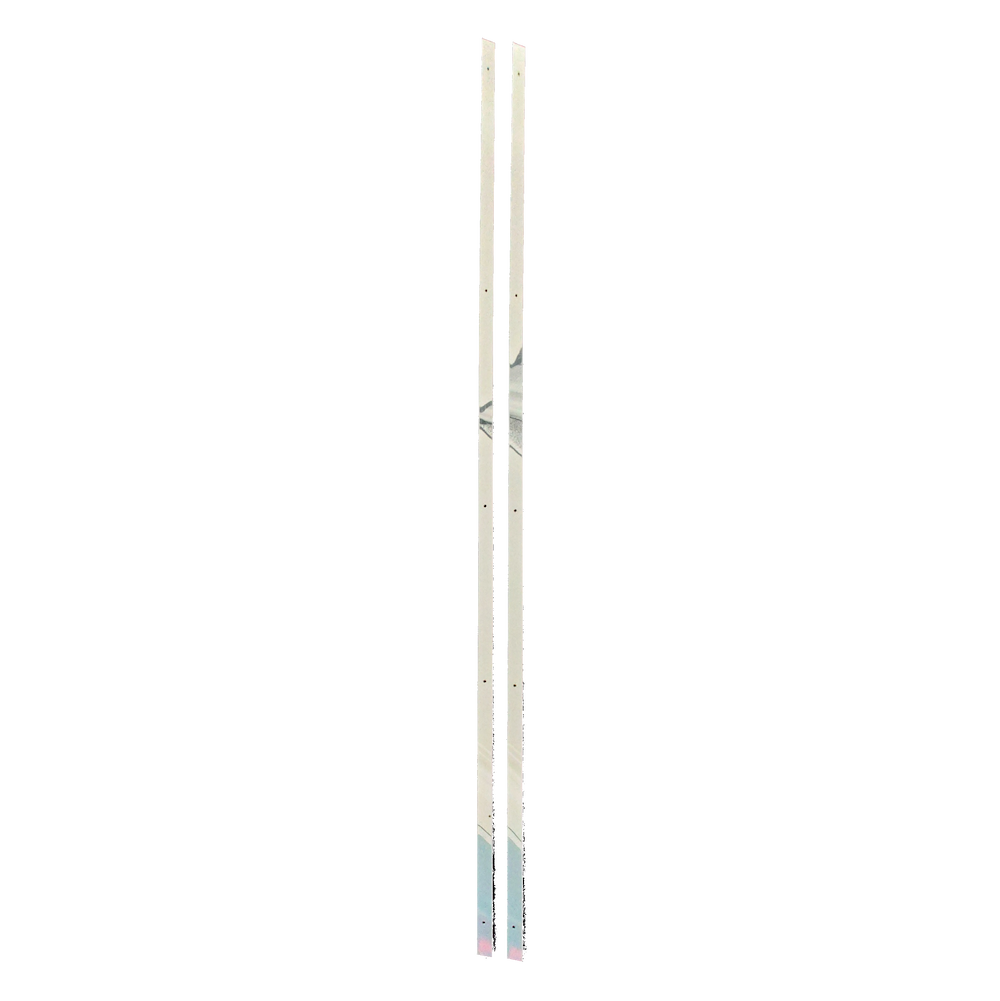

Stainless Steel Strip 430
- 15mm x 956mm x 0.7mm
2
A07
Silicone Alignment Insert | 2020 Hardware
- 90mm
4
A08
Silicone Alignment Insert | 2020 Hardware
- 20mm
5
B01
64x64px LED Module | Indoor
- P3
20
B02
Magnetic Feet | M4
- 13mm x 12mm
1
B03

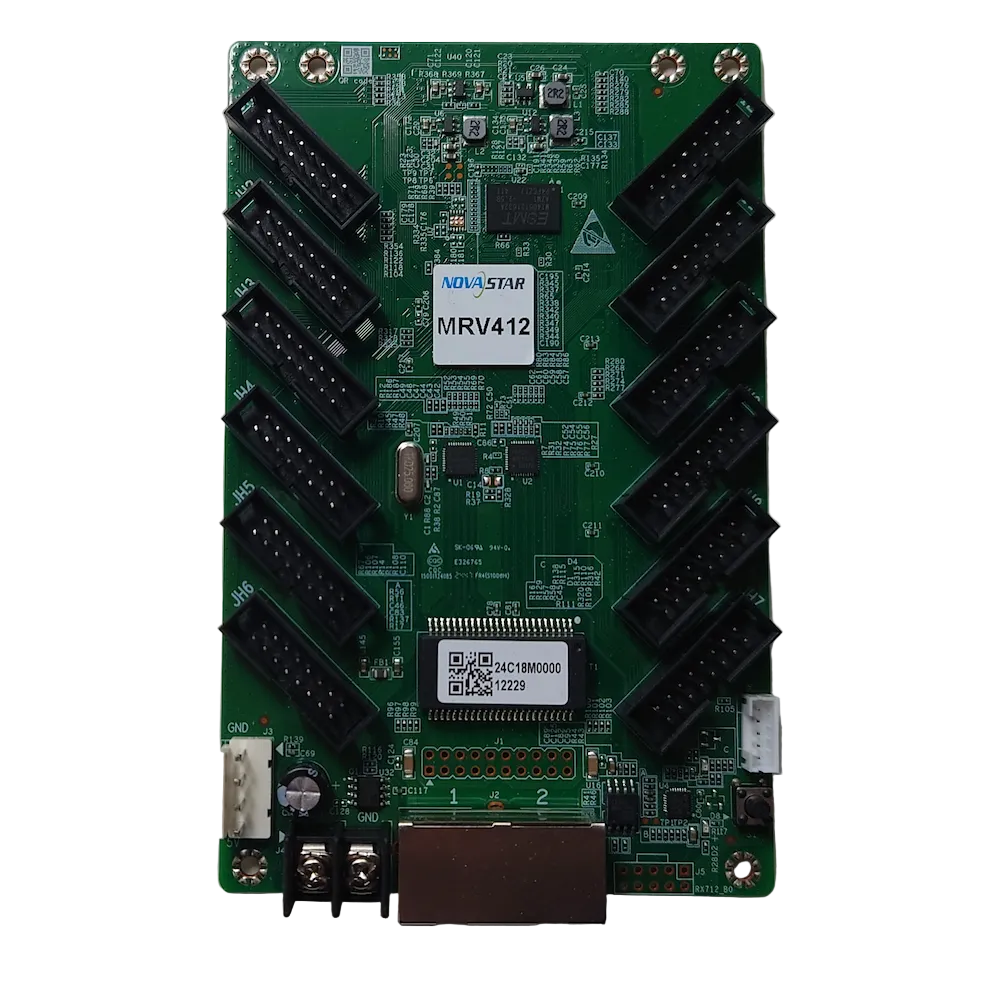

Receiving Card | Novastar
- MRV412
2
B04

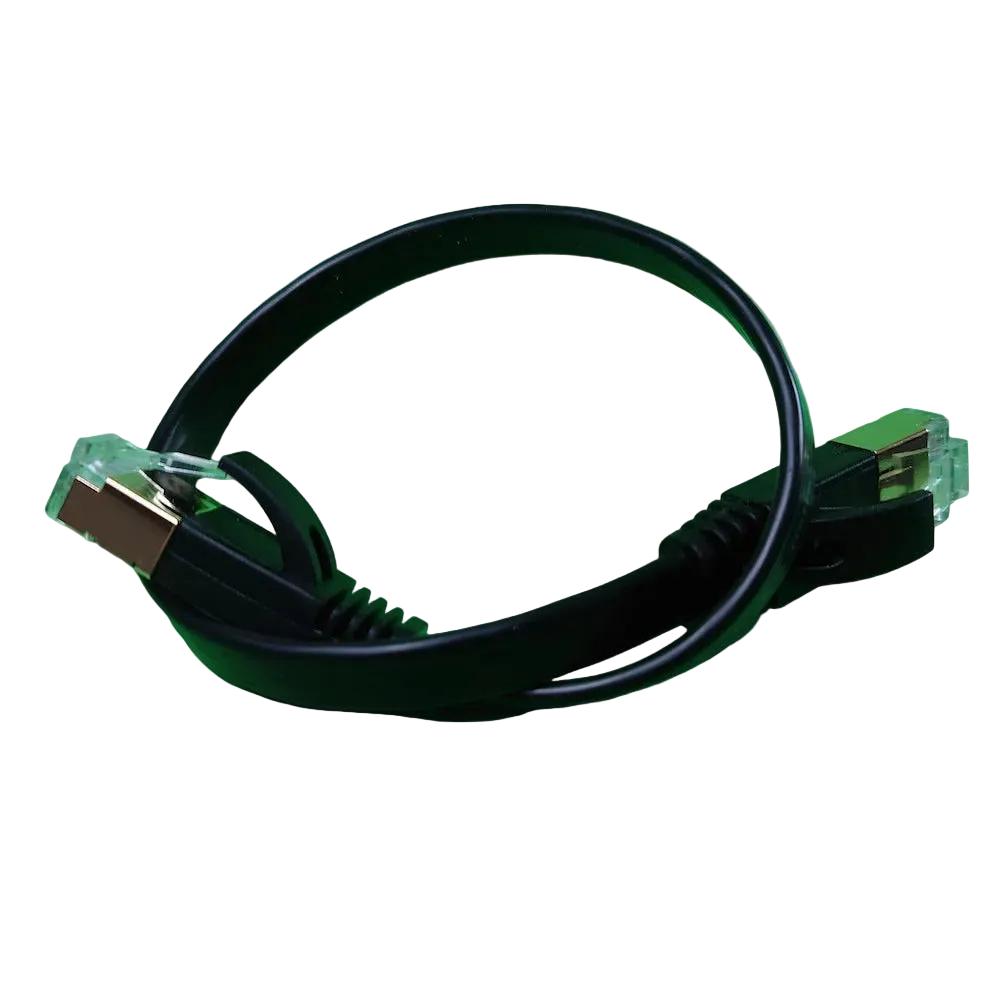

RJ45 Network Cable
- 150mm
1
B05

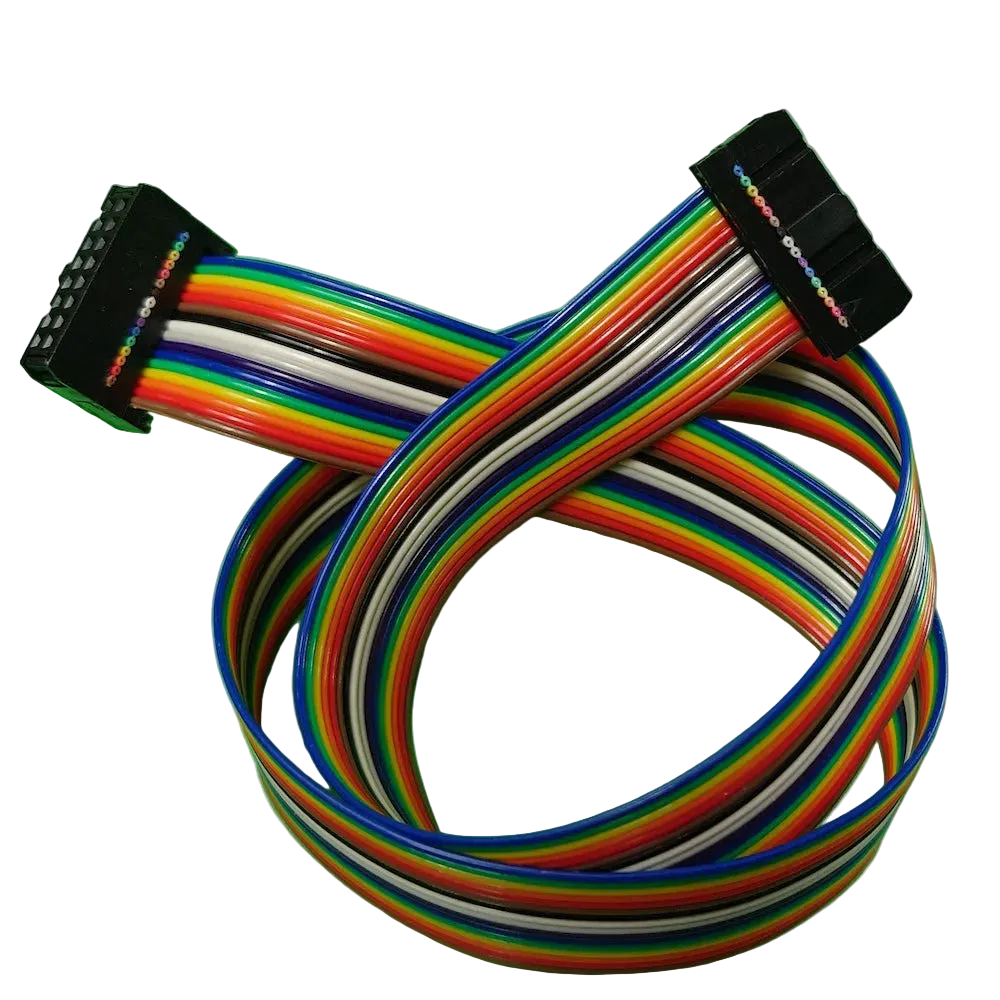

Data Cable | 16 Core Ribbon
- 530mm
1
B06
Data Cable | 16 Core Ribbon
- 380mm
1
B07

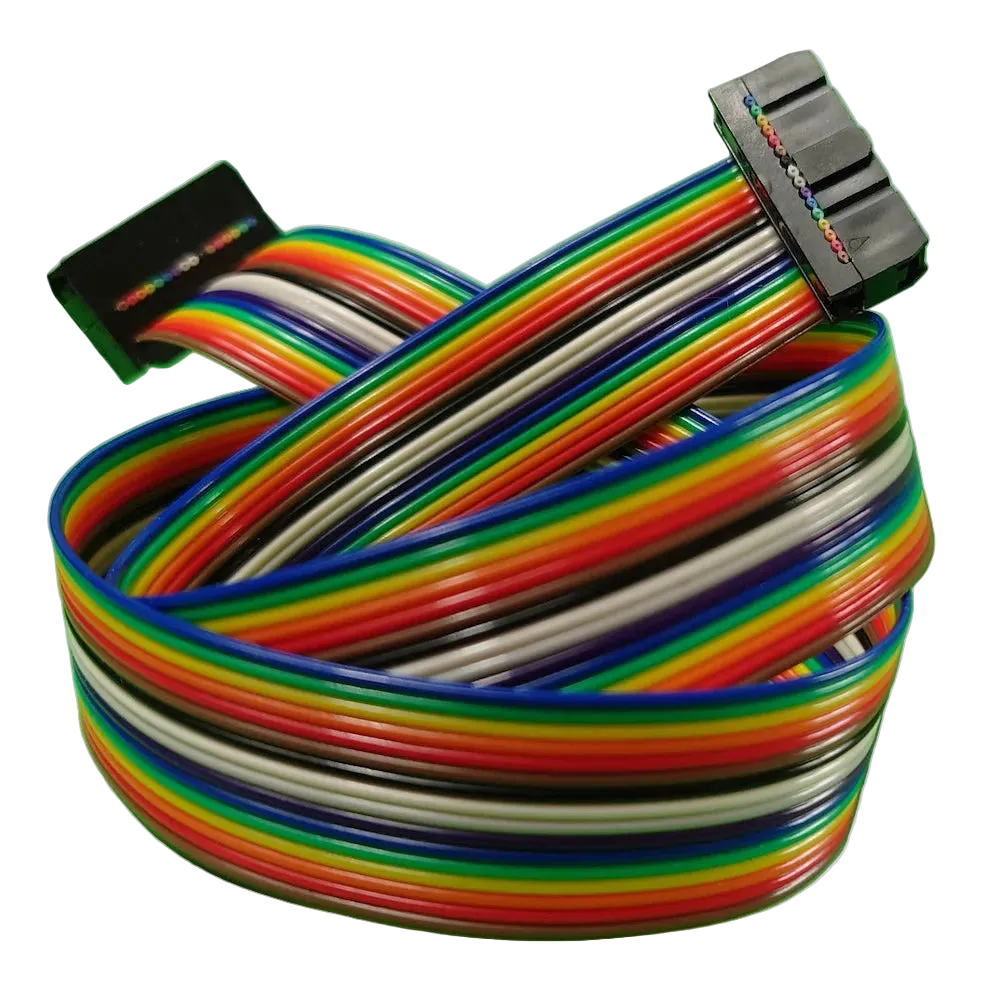

Data Cable | 16 Core Ribbon
- 340mm
1
B08

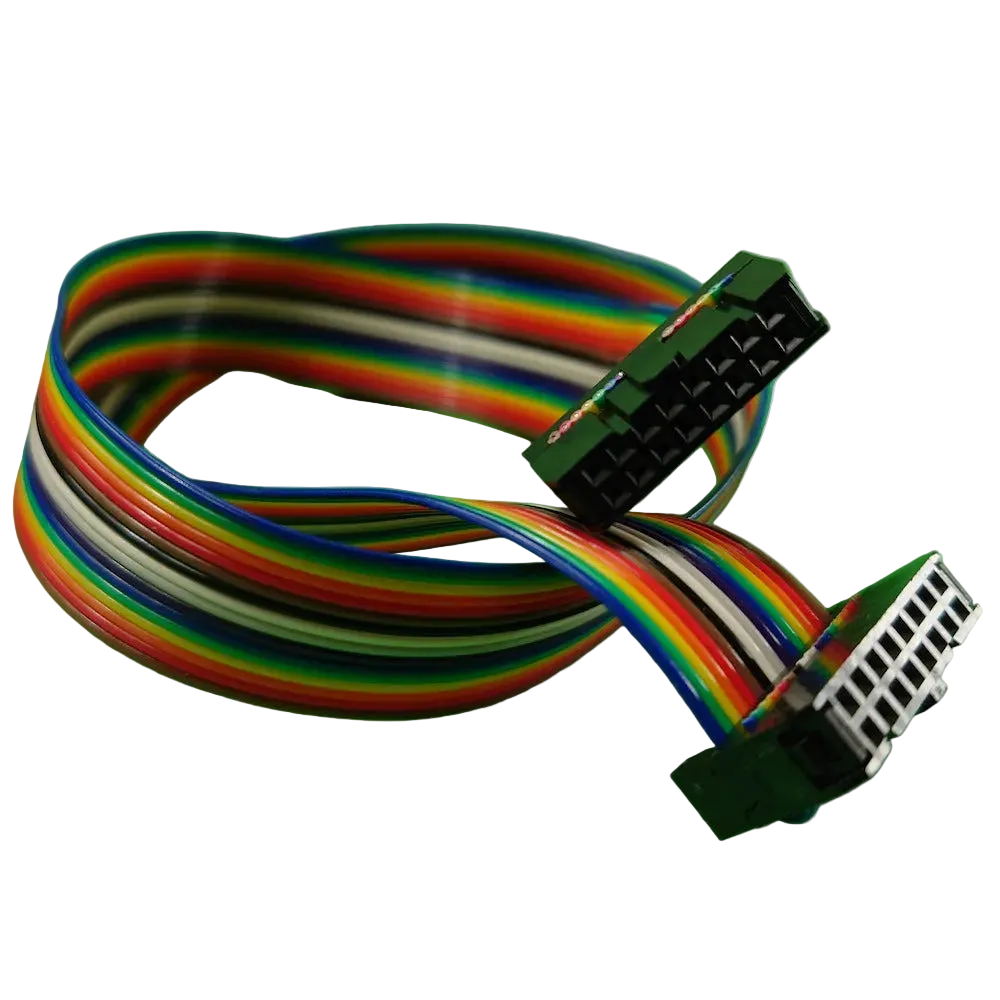

Data Cable | 16 Core Ribbon
- 230mm
1
B09

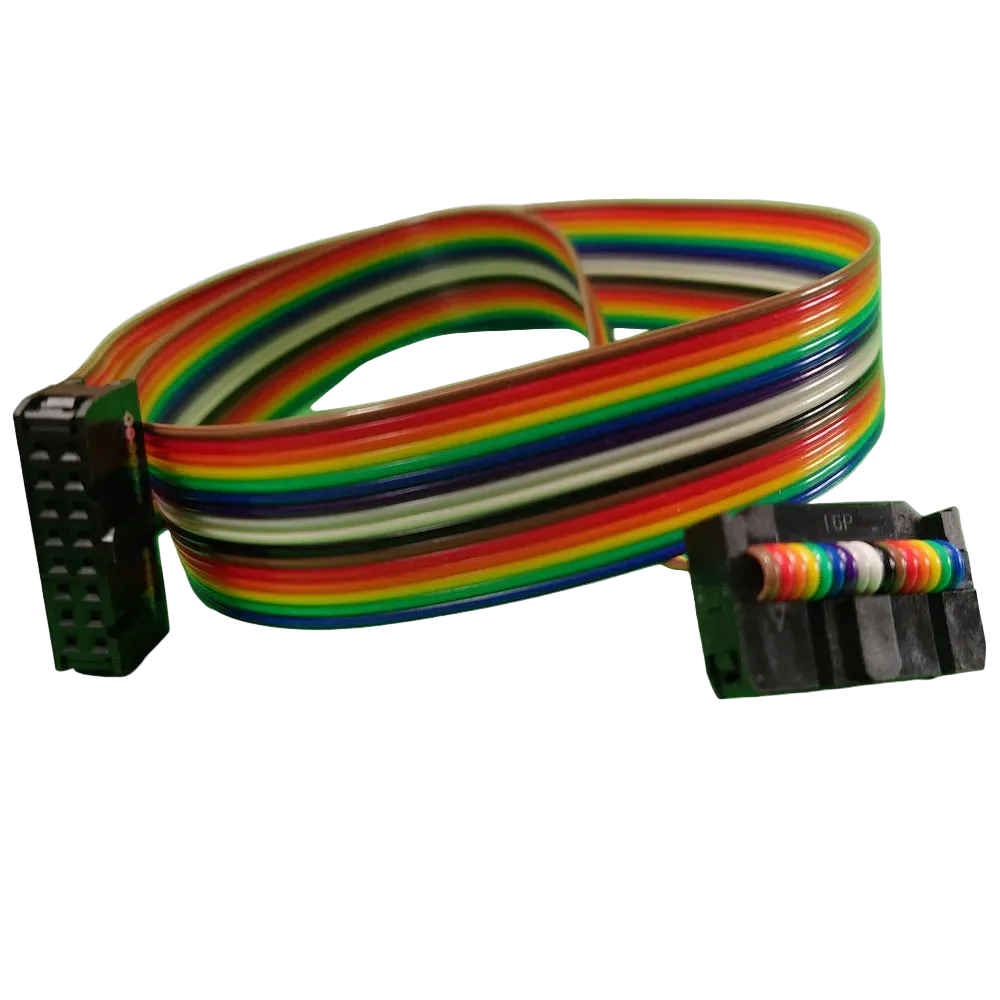

Data Cable | 16 Core Ribbon
- 200mm
1
C01
C13 + Fuse + Switch Panel Mount Socket
2
C02
RJ45 D-type Female Connector Panel Mount
- Cat6
1
C03
Mean Well PSU
- 200W | 5V
1
C05

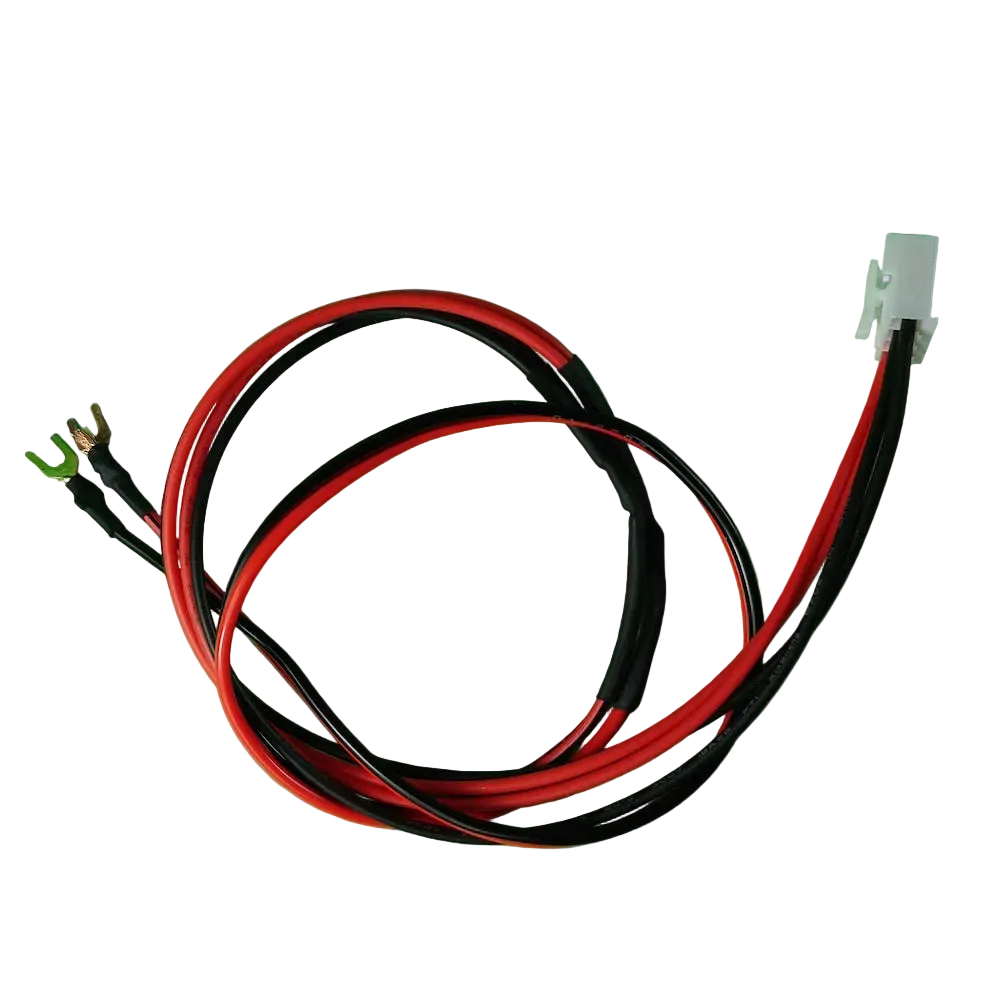

LED Module Red/Black Cable
- 530mm+150mm | 2x Fork to 2x VH
1
C06

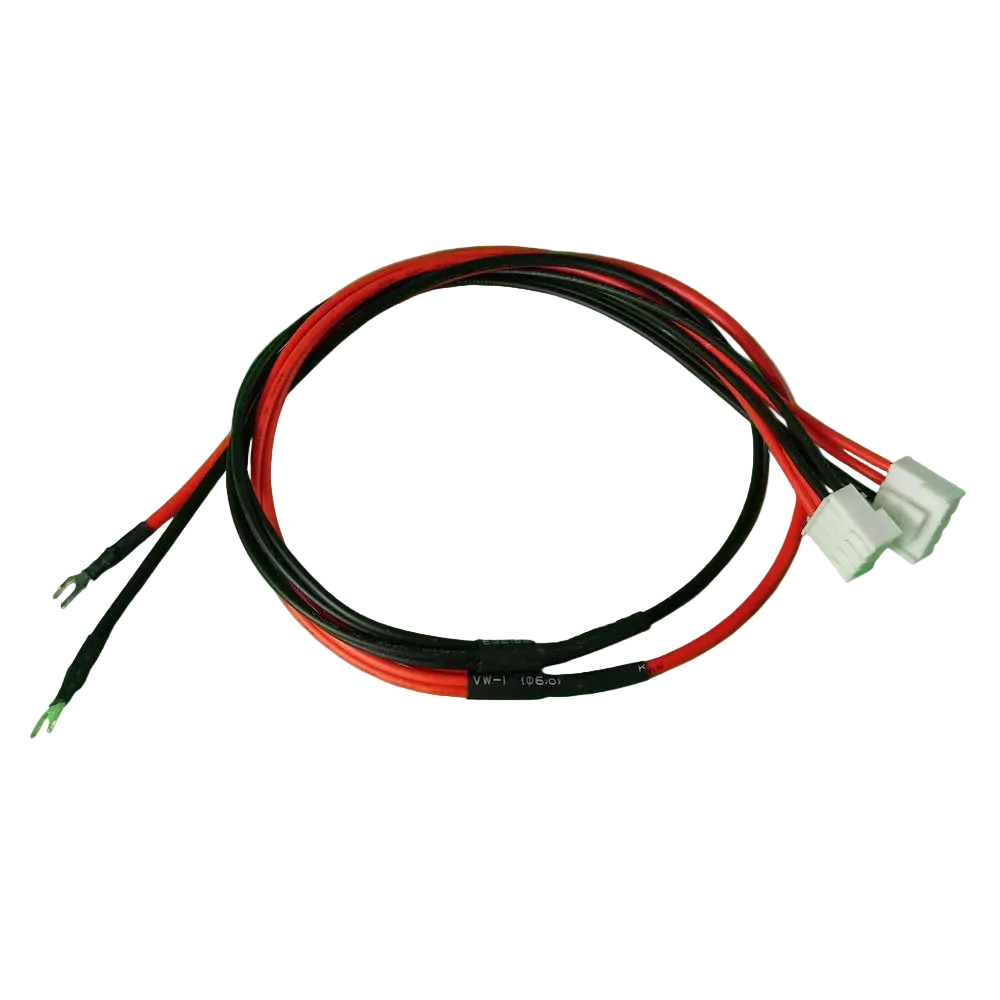

LED Module Red/Black Cable
- 130mm+150mm | 2x Fork to 2x VH
1
C07
LED Module Red/Black Cable
- 130mm+150mm | 2x Fork to 1x VH
1
C08
Receiving Card Internal Power Cables
- 140mm
1
C09
LED Panel Internal Mains Cable
- 60mm
4
D01
T-Nuts | 2020 Hardware
- M5
20
D02
T-Nuts | 2020 Hardware
- M3
4
D03
L-Bracket | 2020 Hardware
10
D04

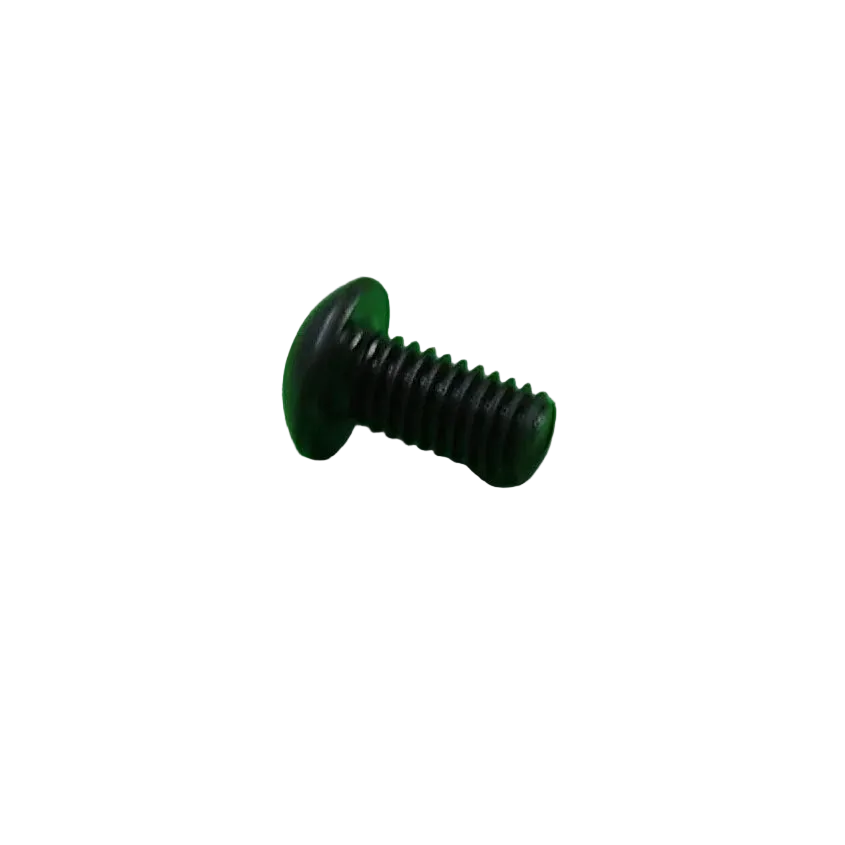

Round Head Screws | M3
- 8mm
14
D05
Countersunk Screws | M3
- 8mm
8
D06
Countersunk Screws | M3
- 12mm
4
D07
Round Head Screws | M5
- 18mm
12
D08
Silicone Washer | M3
- 12mm x 1mm
4
D09

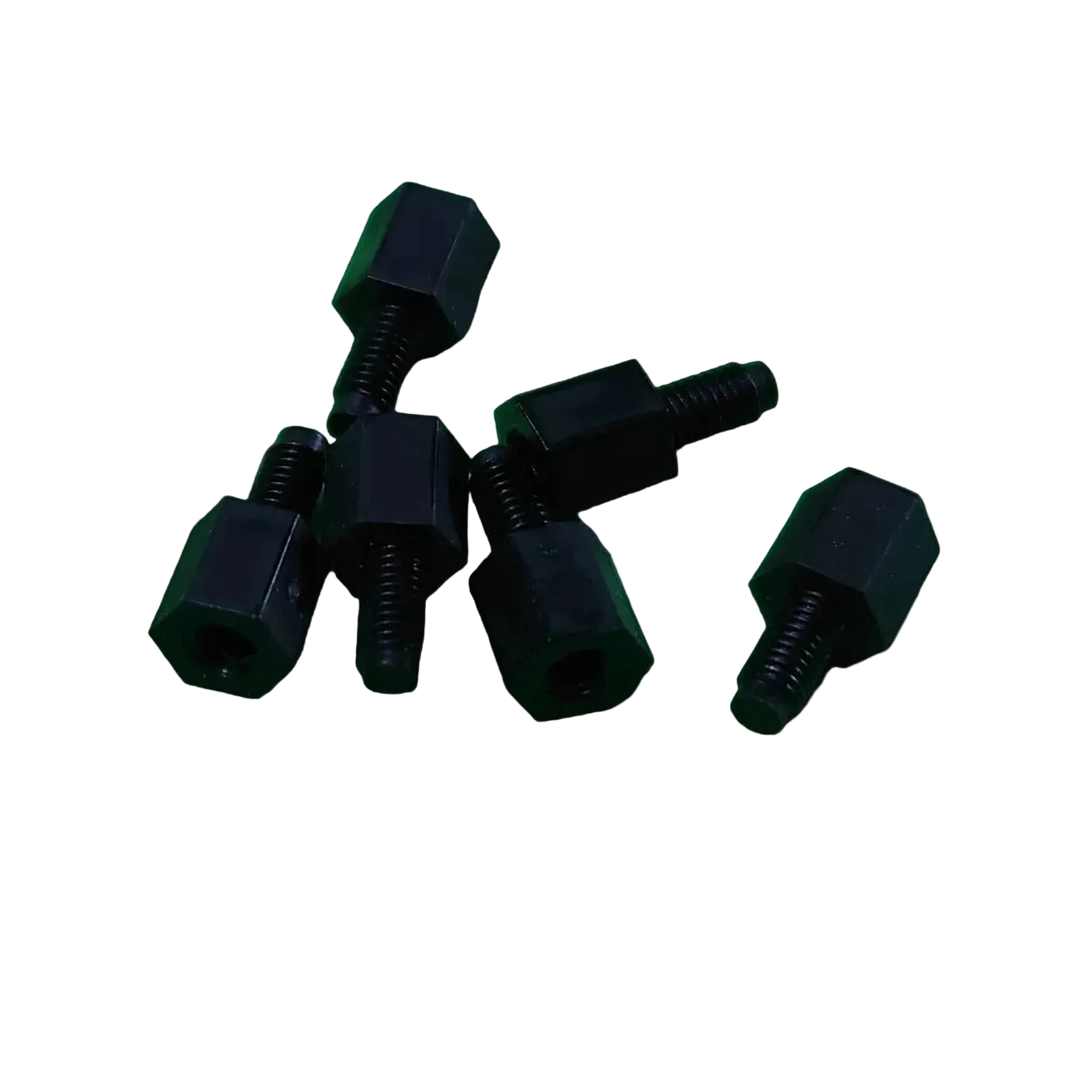

Nylon Stand Off Male/Female | M3
- 6mm
6
D10
Nylon Nuts | M3
- 2mm
Tools Required
Tool
Type
Size
Screwdriver
Phillips Head
-
Scissors
-
-
Screwdriver
Torx
T8
Got everything you need?
Excellent! Click NEXT to get started building!
