Step 12 : Connect modules to frame
Required
Parts
-

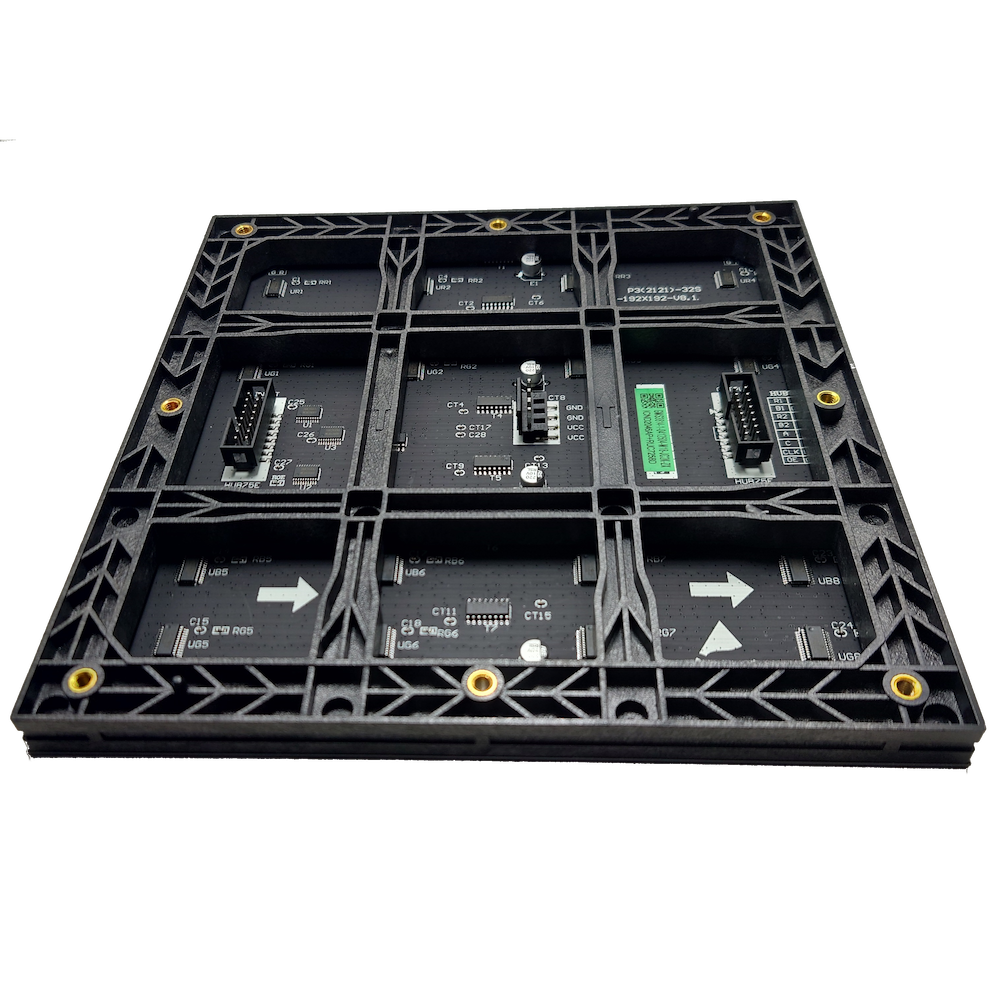

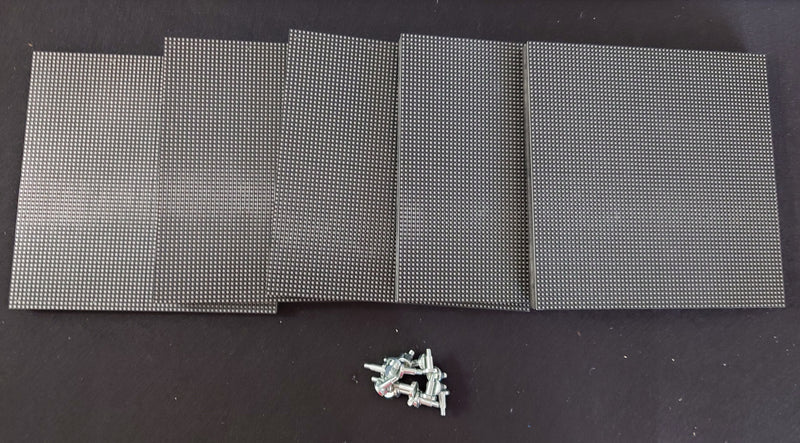

B01 : P3 64x64px LED Module | Indoor5x -

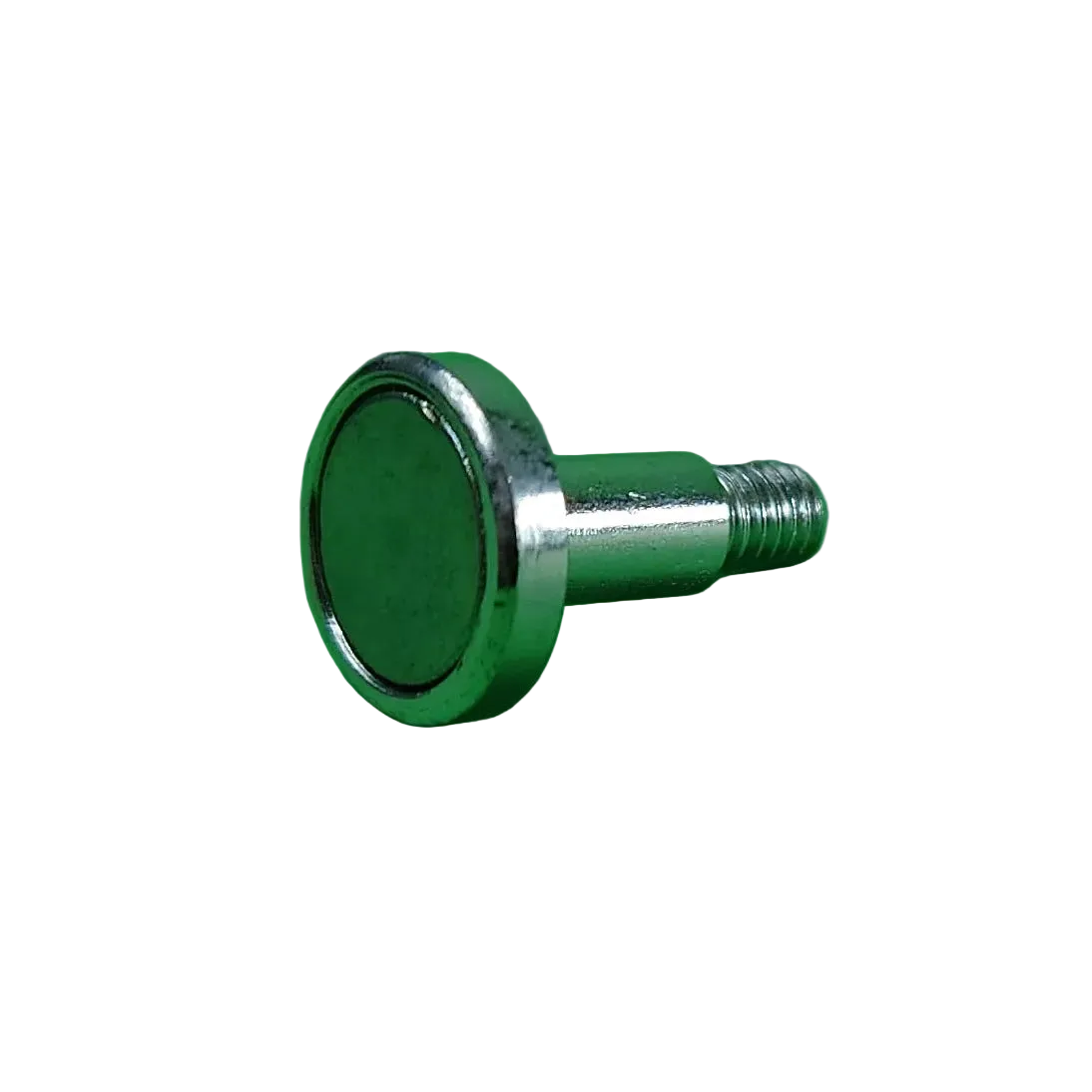

B02 : 13mm x 12mm Magnetic Feet | M420x
Instructions

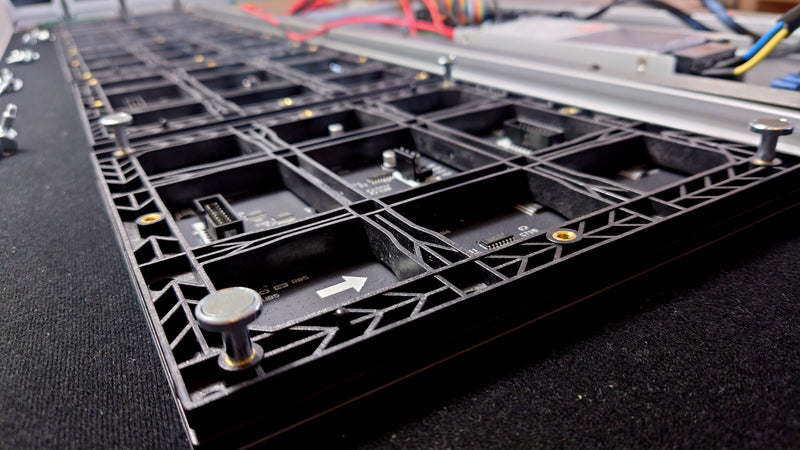

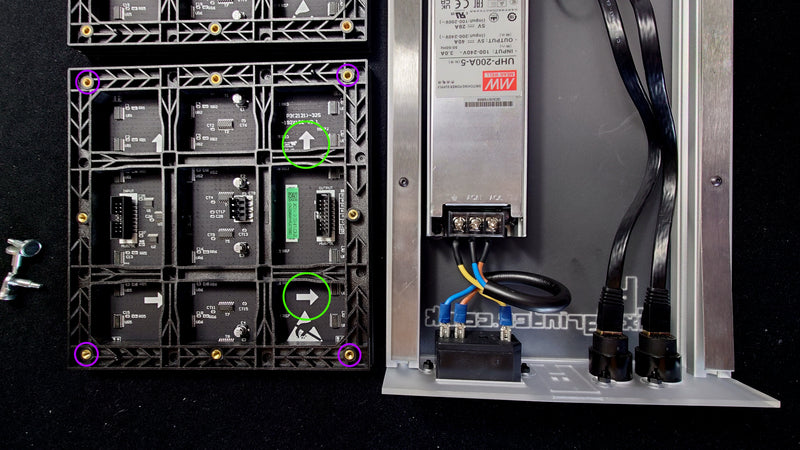

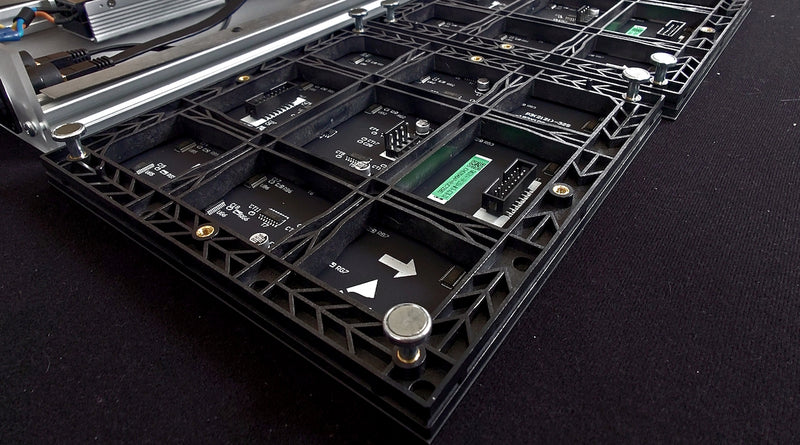

1 - Screw magnetic feet onto LED modules

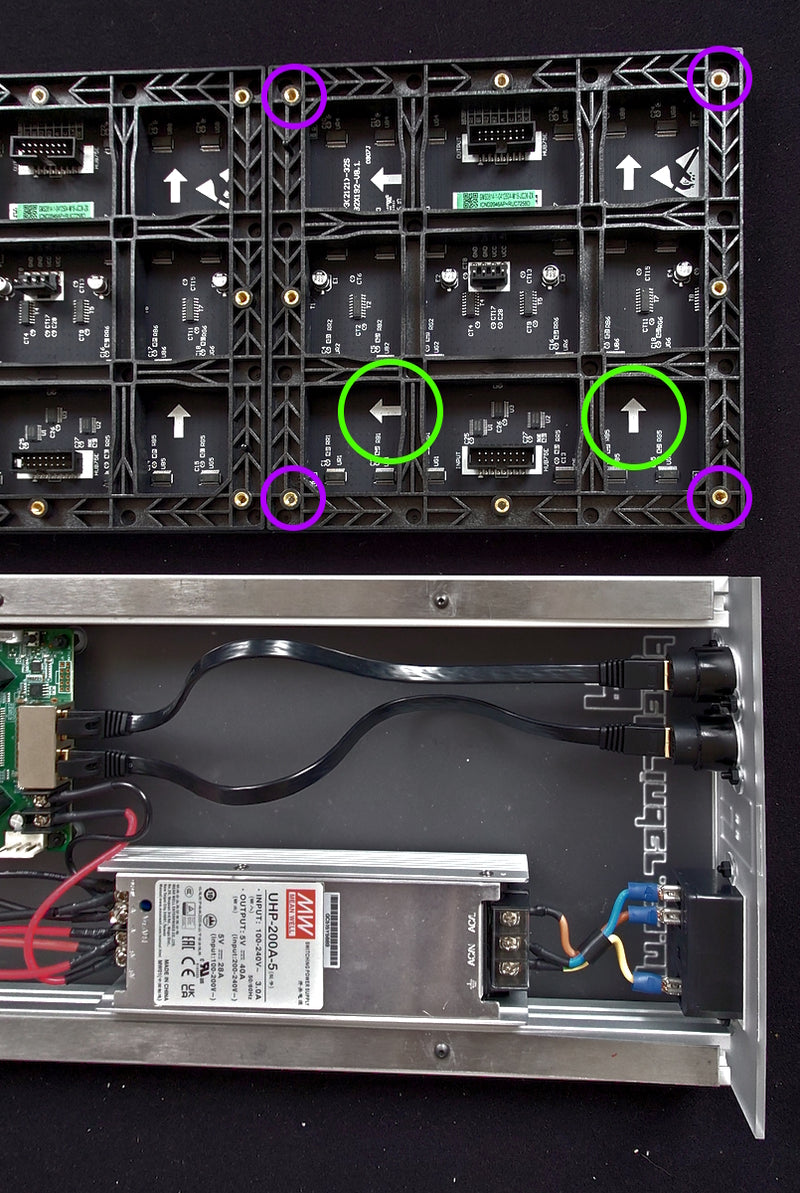

Attach the magnetic feet to the corner screw points on the back of each LED module, highlighted with the purple circles in the image
1 / 1

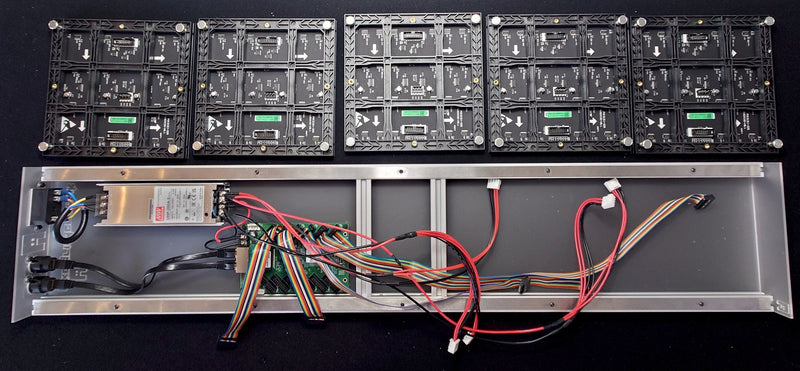

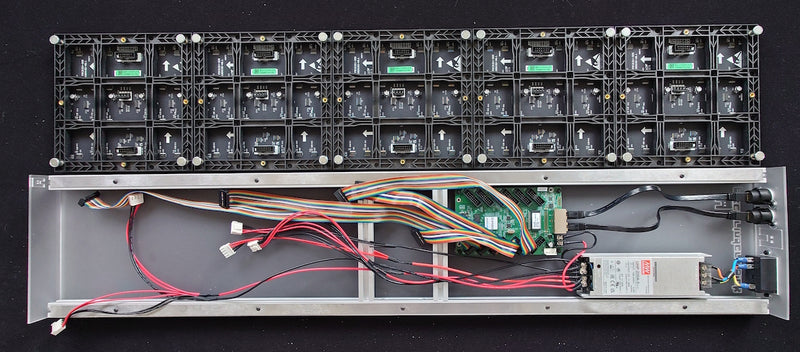

2 - Place modules next to frame

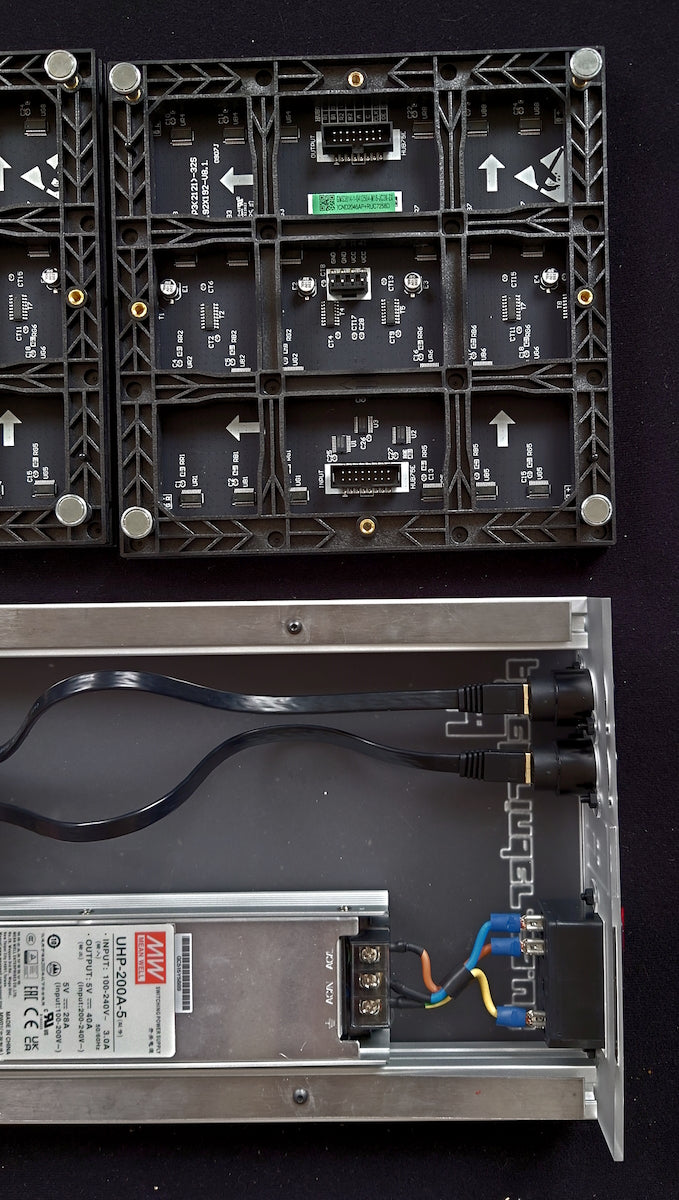

Align as shown using the arrows on the back of the LED modules, highlighted with the green circles in the image.
1 / 1

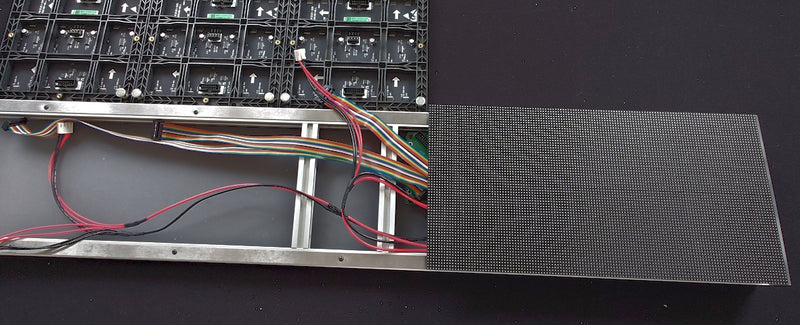

3 - Attach Modules to frame 1 at a time

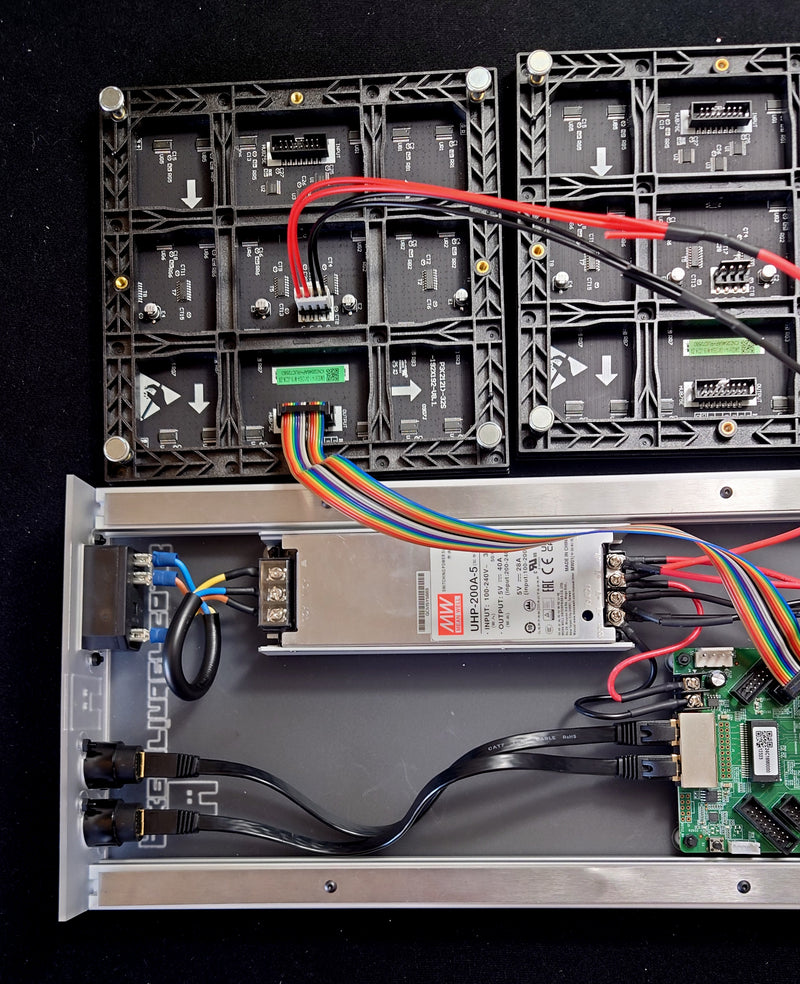

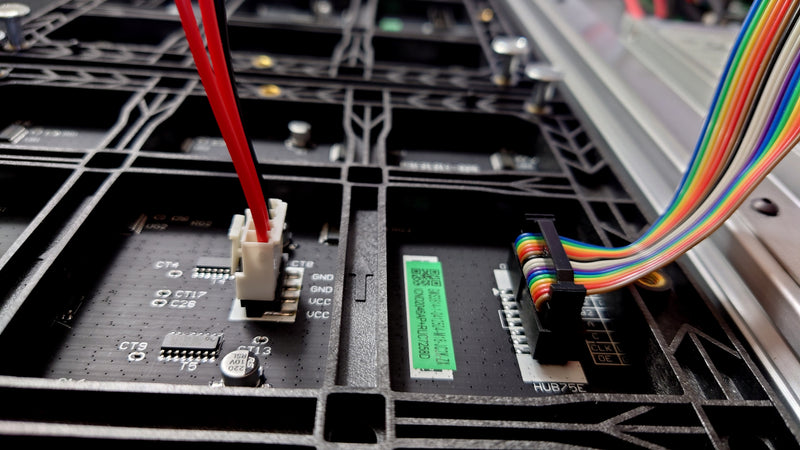

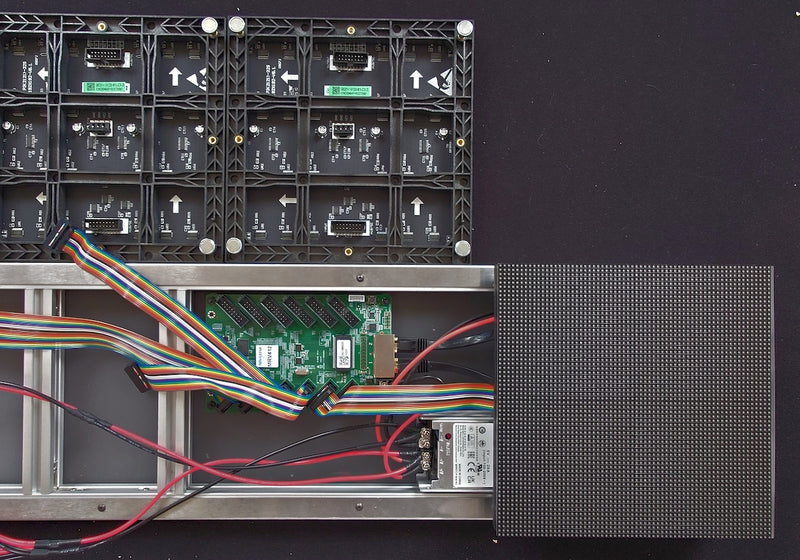

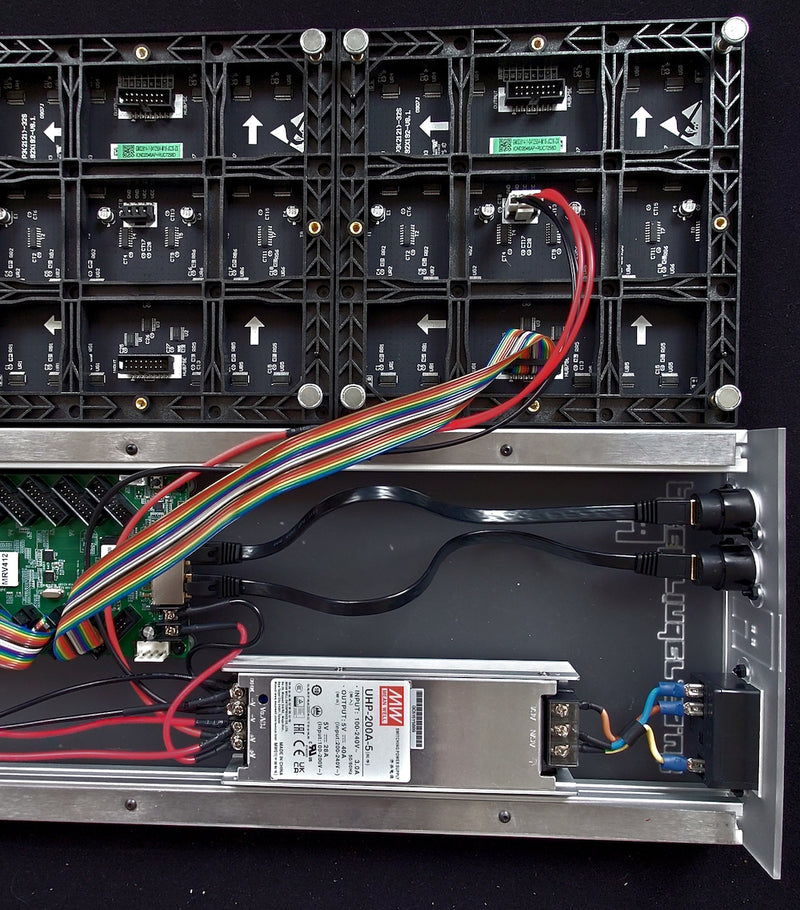

Starting with the module nearest the base end of the panel, connect the ribbon and data cables as shown.

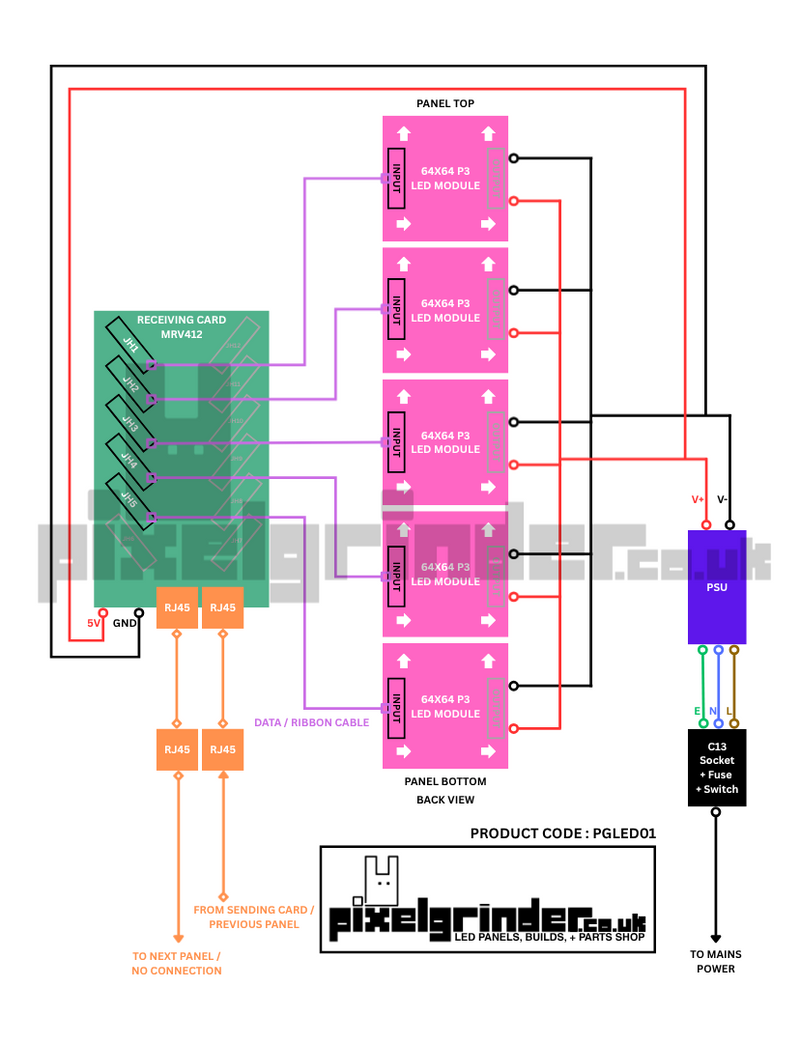

Ensure the correct data cable is connected to the correct module - see wiring schematic

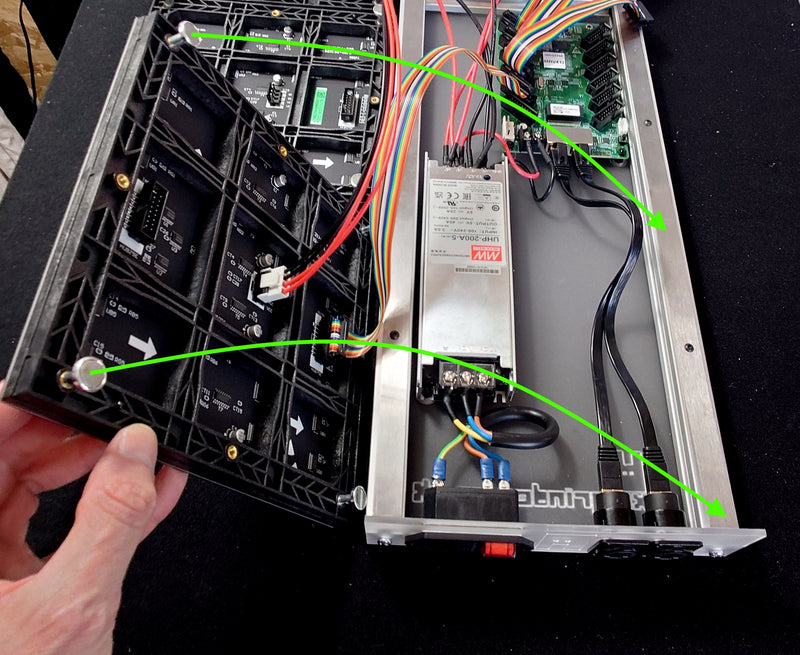

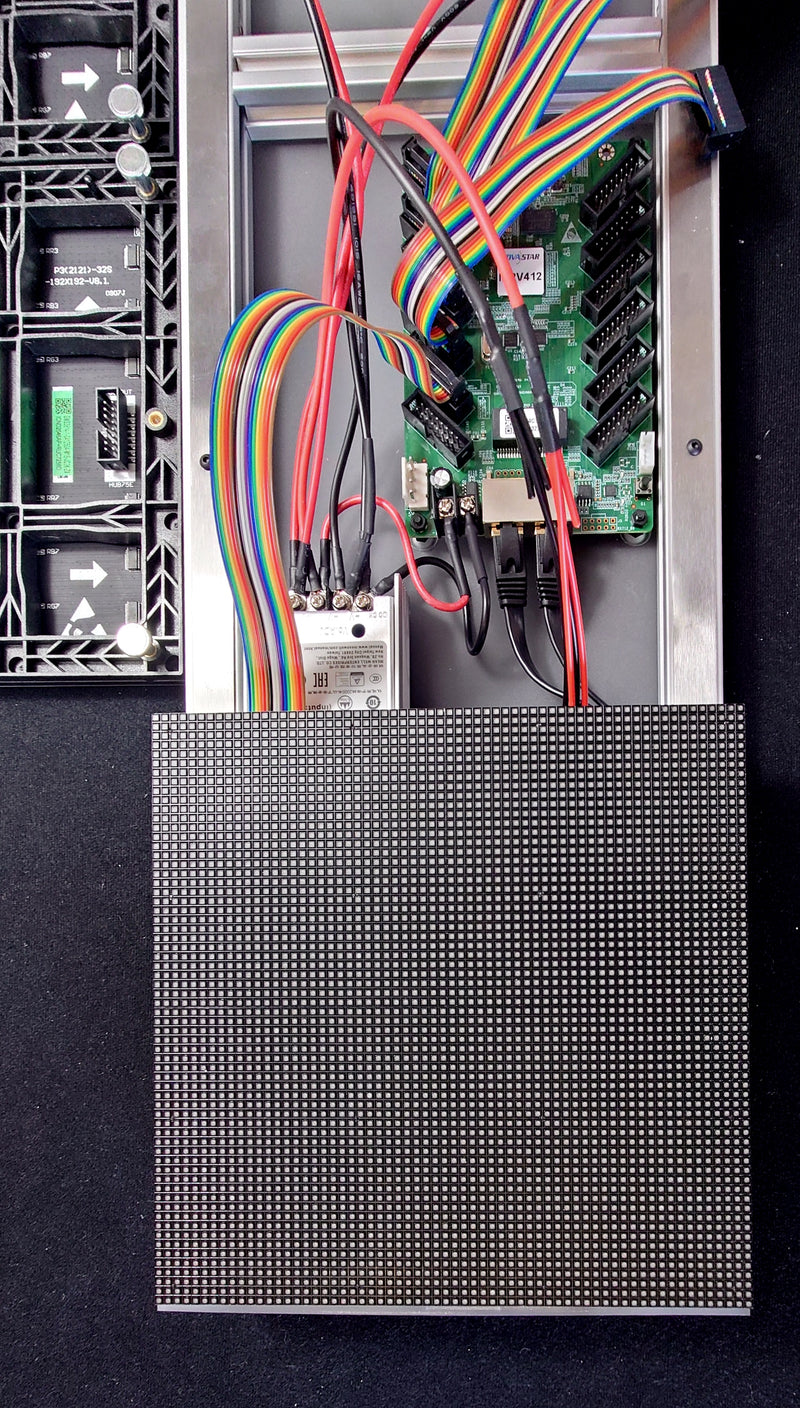

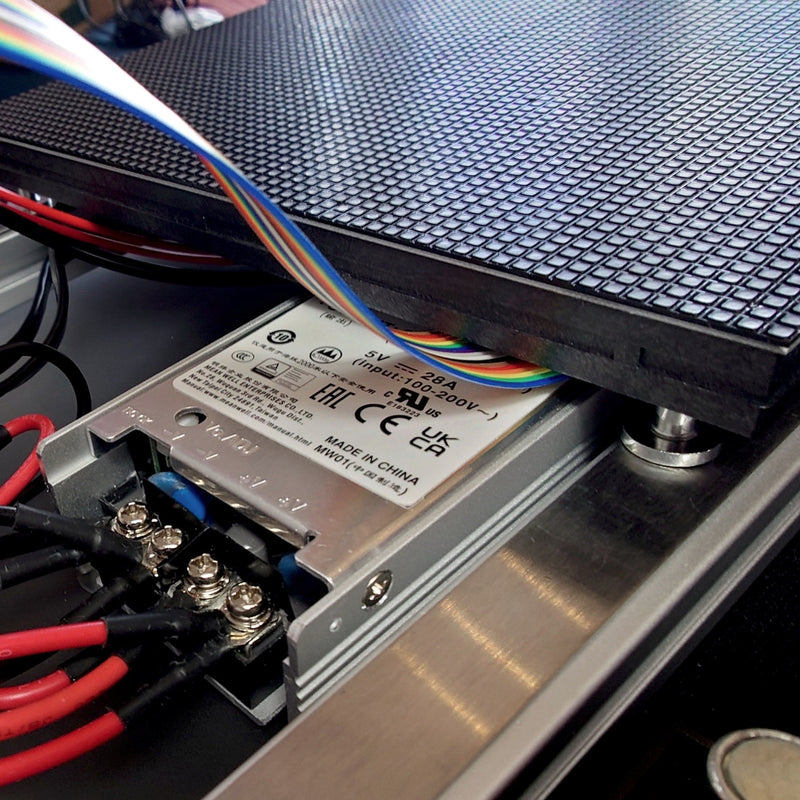

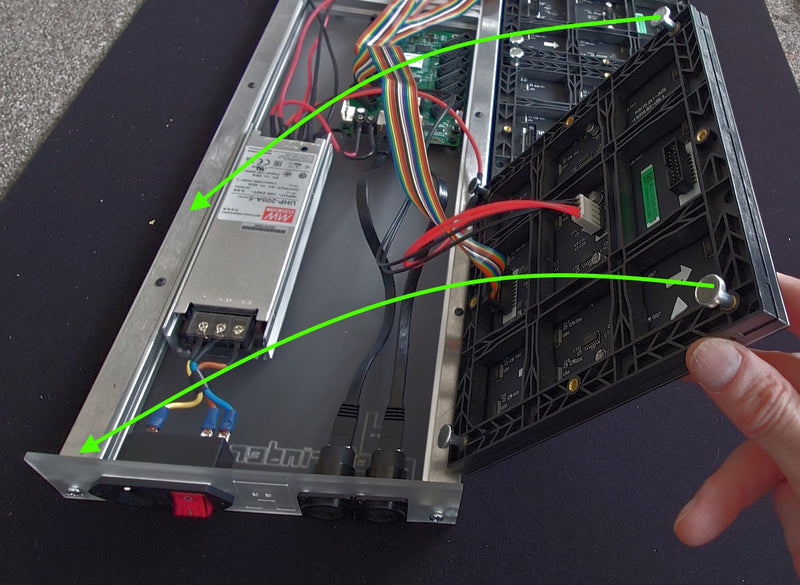

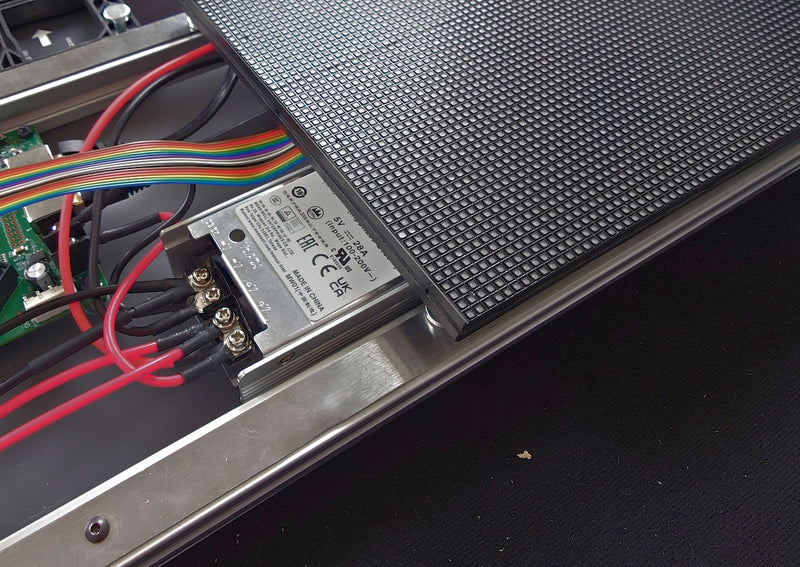

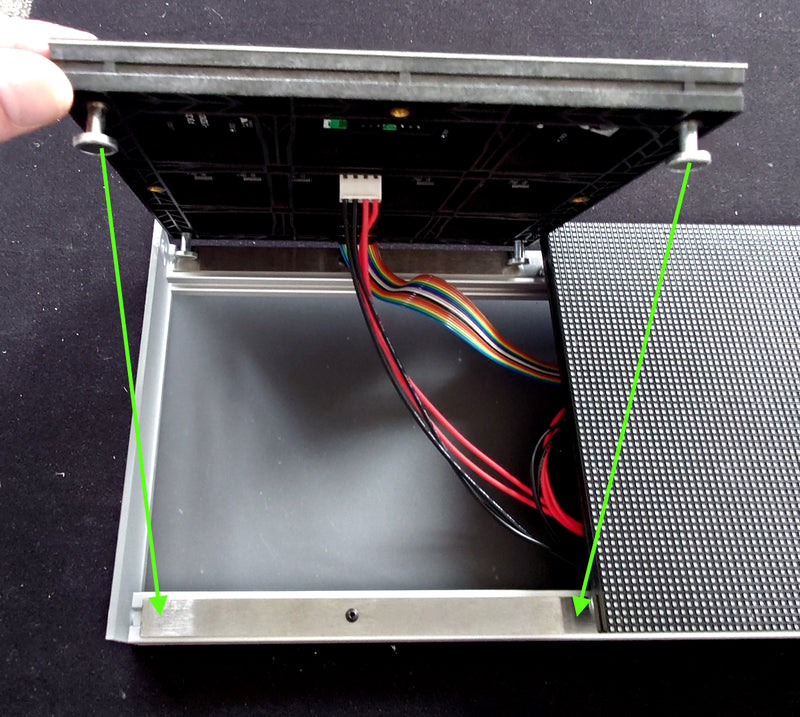

Flip the module over the frame and attach to stainless steel strip with magnetic feet

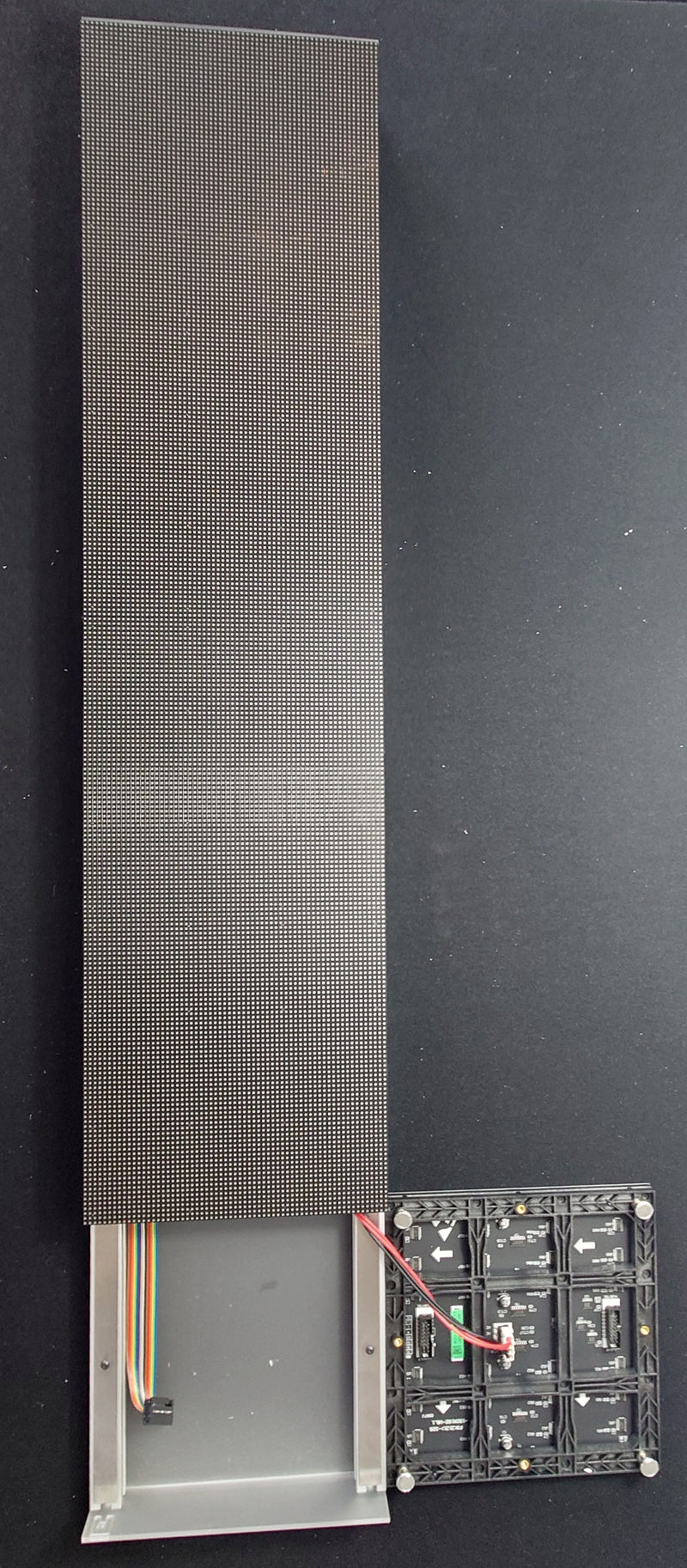

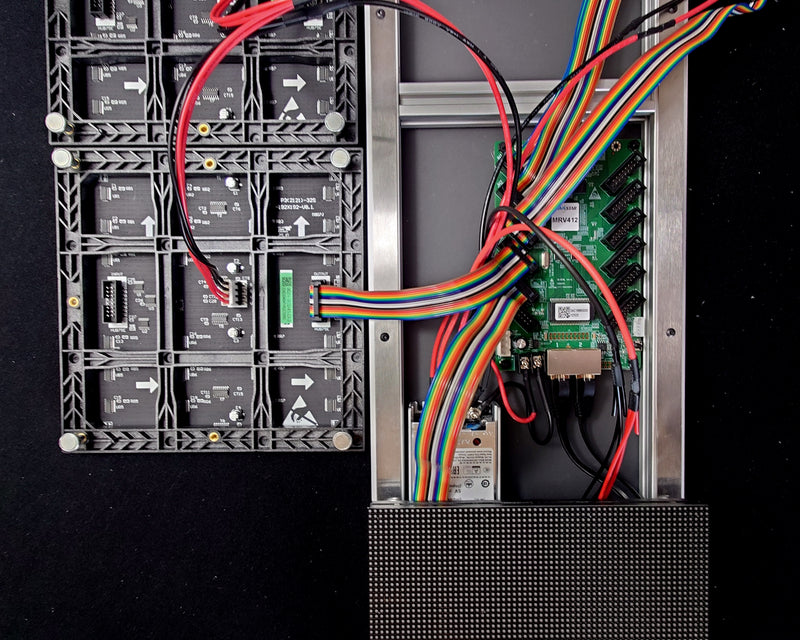

Repeat for each module as you move up the panel.

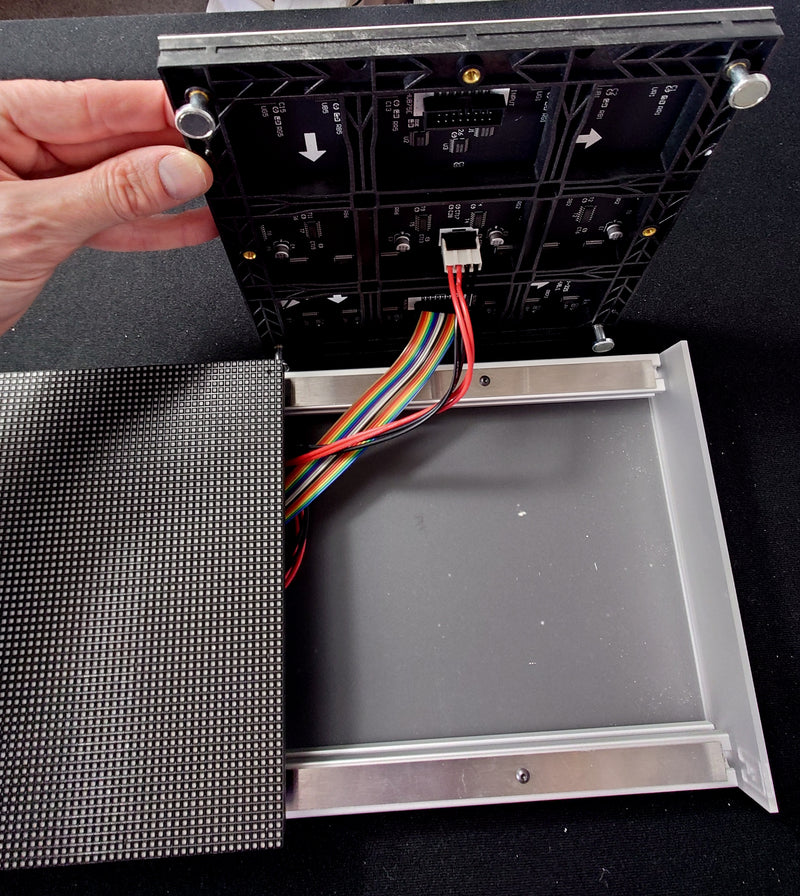

By design, some of the cables will not reach the modules when they are laid by the side of the frame - these will need connecting whilst flipping the module over onto the frame.
1 / 1

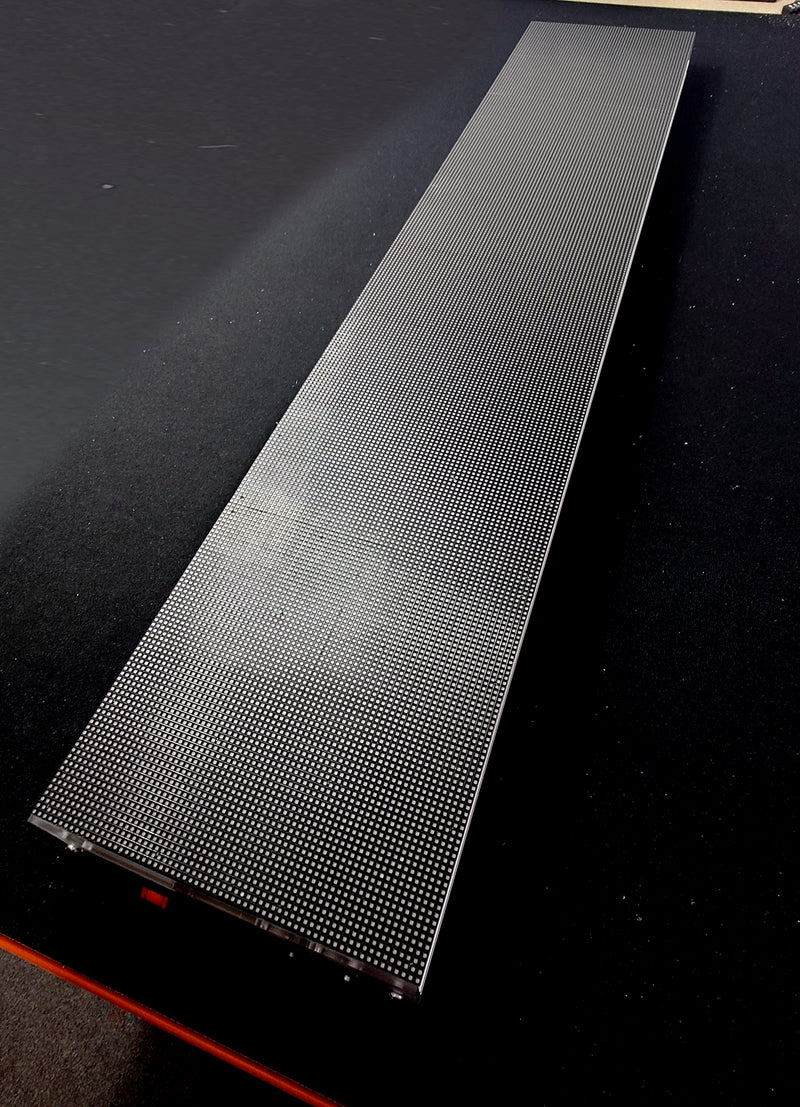

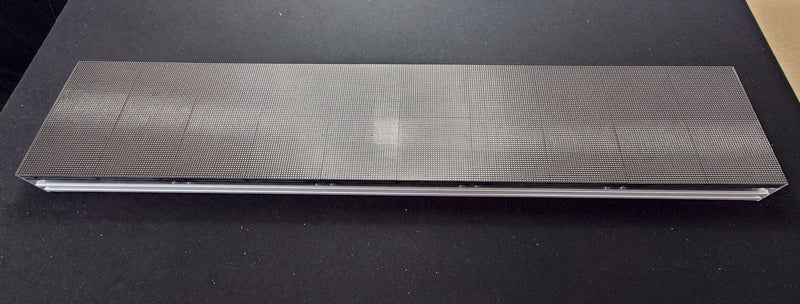

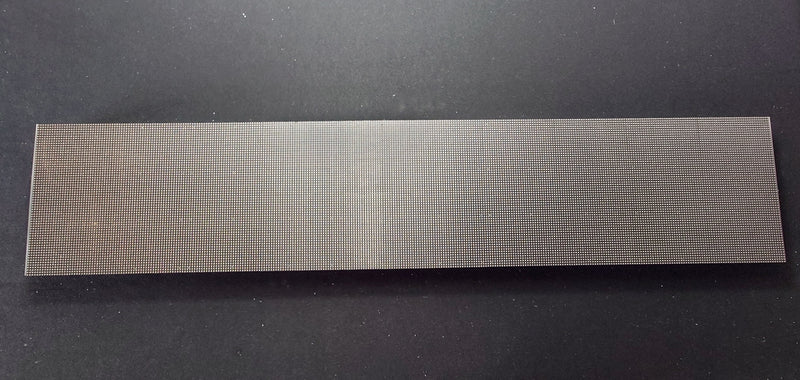

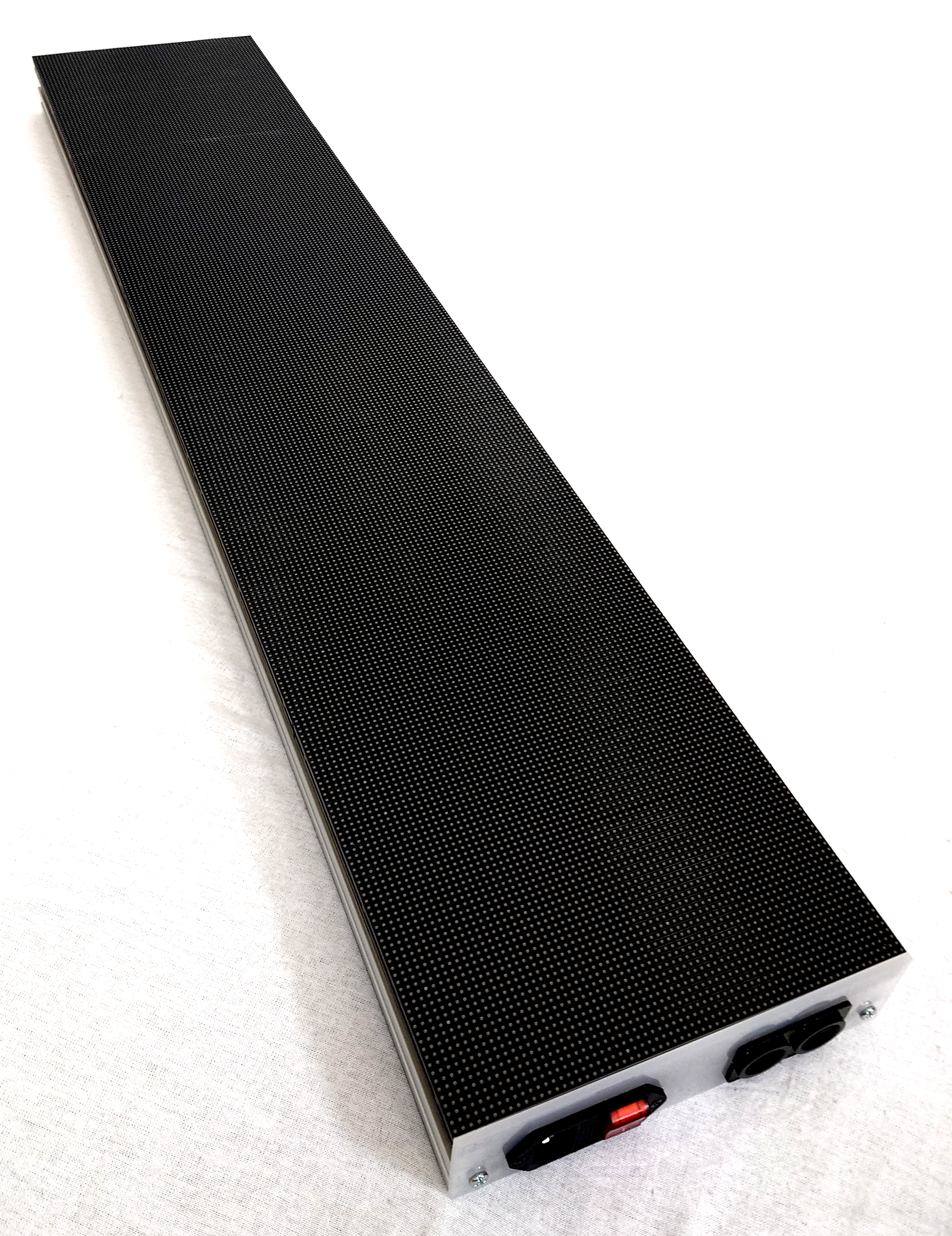

4 - Nice work, you've built an awesome Pixelgrinder LED panel!
Well done on completing the build!
That's a well cool panel you've got, nice work. :D
1 / 1
