Step 11 : Connect up the internal power cables
Required
Parts
-

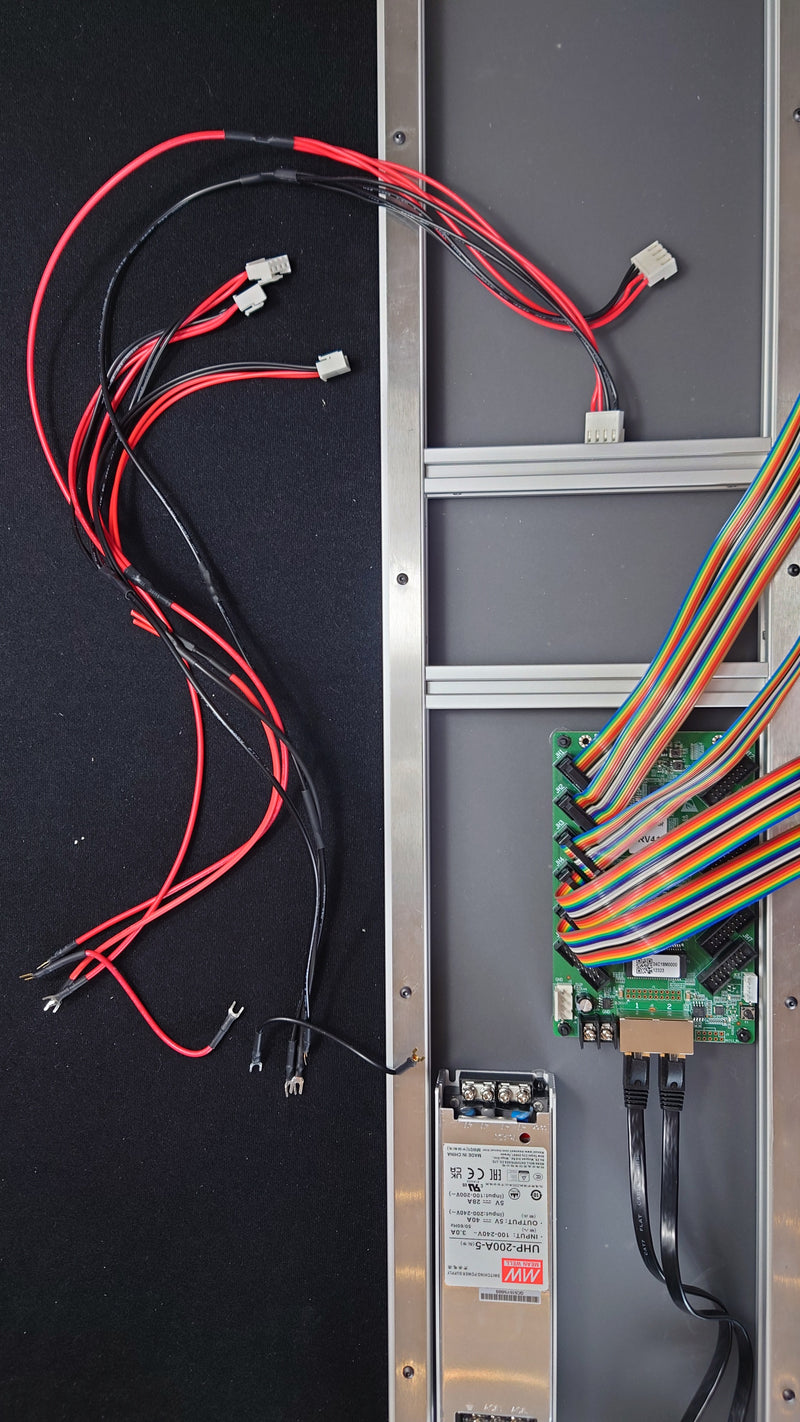

C05 : 530mm+150mm | 2x Fork to 2x VH LED Module Red/Black Cable1x -
C06 : 130mm+150mm | 2x Fork to 2x VH LED Module Red/Black Cable1x
-
C07 : 130mm+150mm | 2x Fork to 1x VH LED Module Red/Black Cable1x -
C08 : 140mm Receiving Card Internal Power Cables1x
Tools
-
ScrewdriverPhillips Head
Instructions
1 - Attach mains cable to PSU from C13 socket
!
DANGER OF ELECTROCUTION
Ensure the PSU / panel is not plugged into the mains when doing any build or maintenance work on it
Double check all connections are secure and the wires are attached to the correct points
Ensure the PSU / panel is not plugged into the mains when doing any build or maintenance work on it
Double check all connections are secure and the wires are attached to the correct points
!

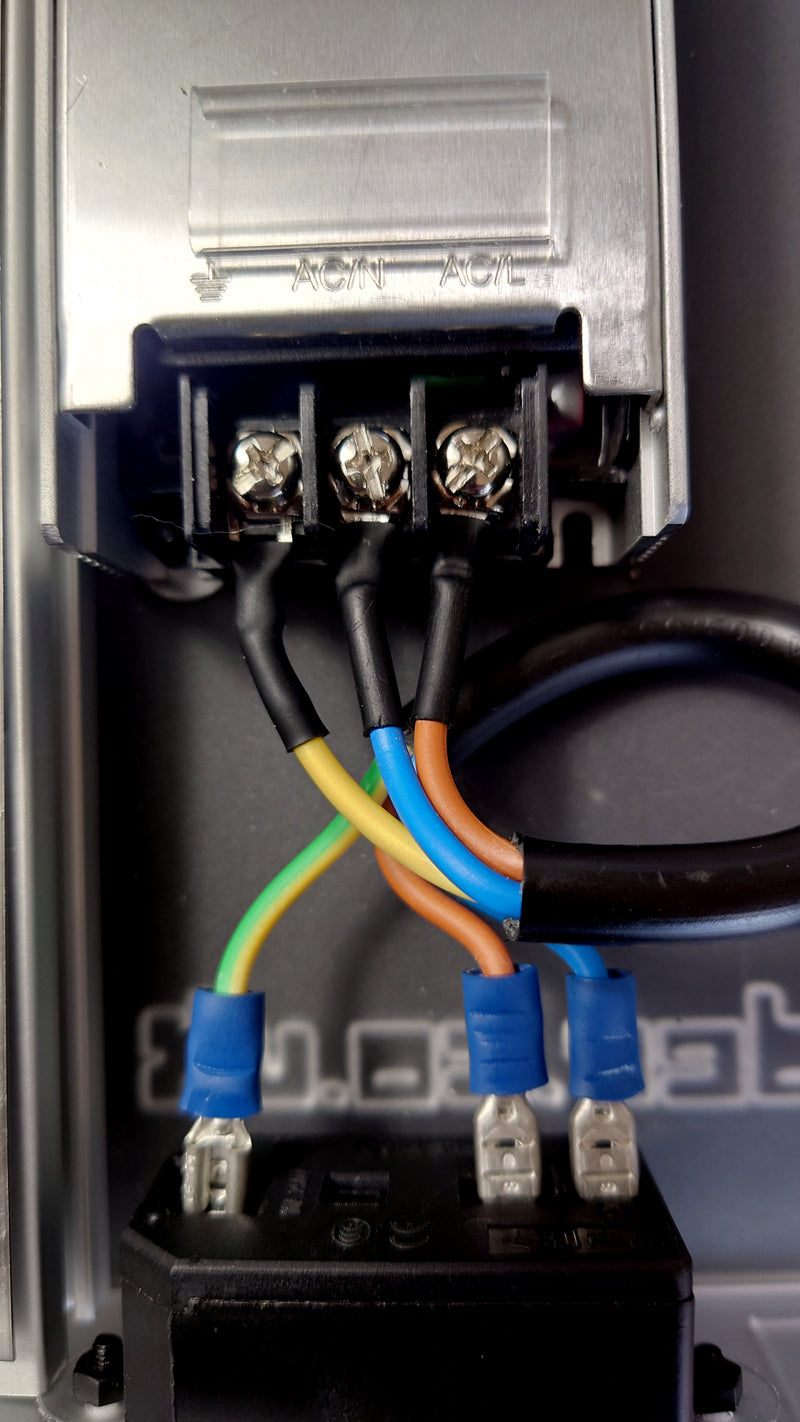

Remove the junction cover from the PSU inlet connection points.
Ensure the correct colours go to the correct connection points as shown:
Brown - Live
Blue - Neutral
Green/Yellow - Earth

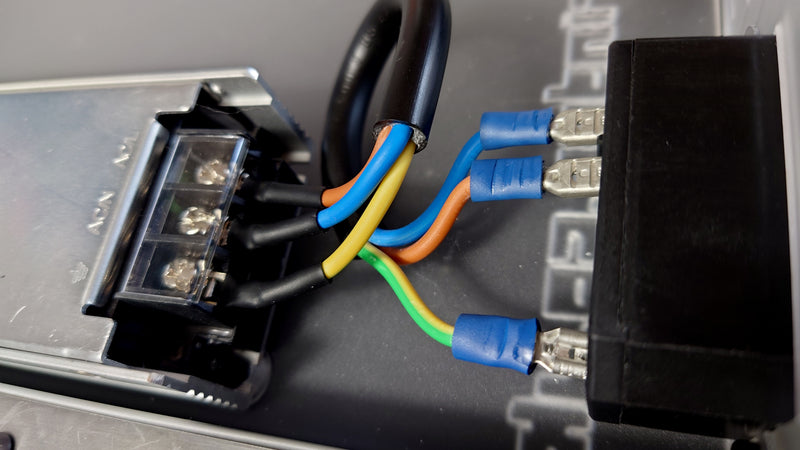

Screw firmly in place then replace connection points cover.
1 / 1
2 - Attach internal power cables to PSU
!
Danger of short circuit
Keep positive and negative forks isolated from one another
Keep positive and negative forks isolated from one another
!
Black to negative (-)
Red to positive (+)

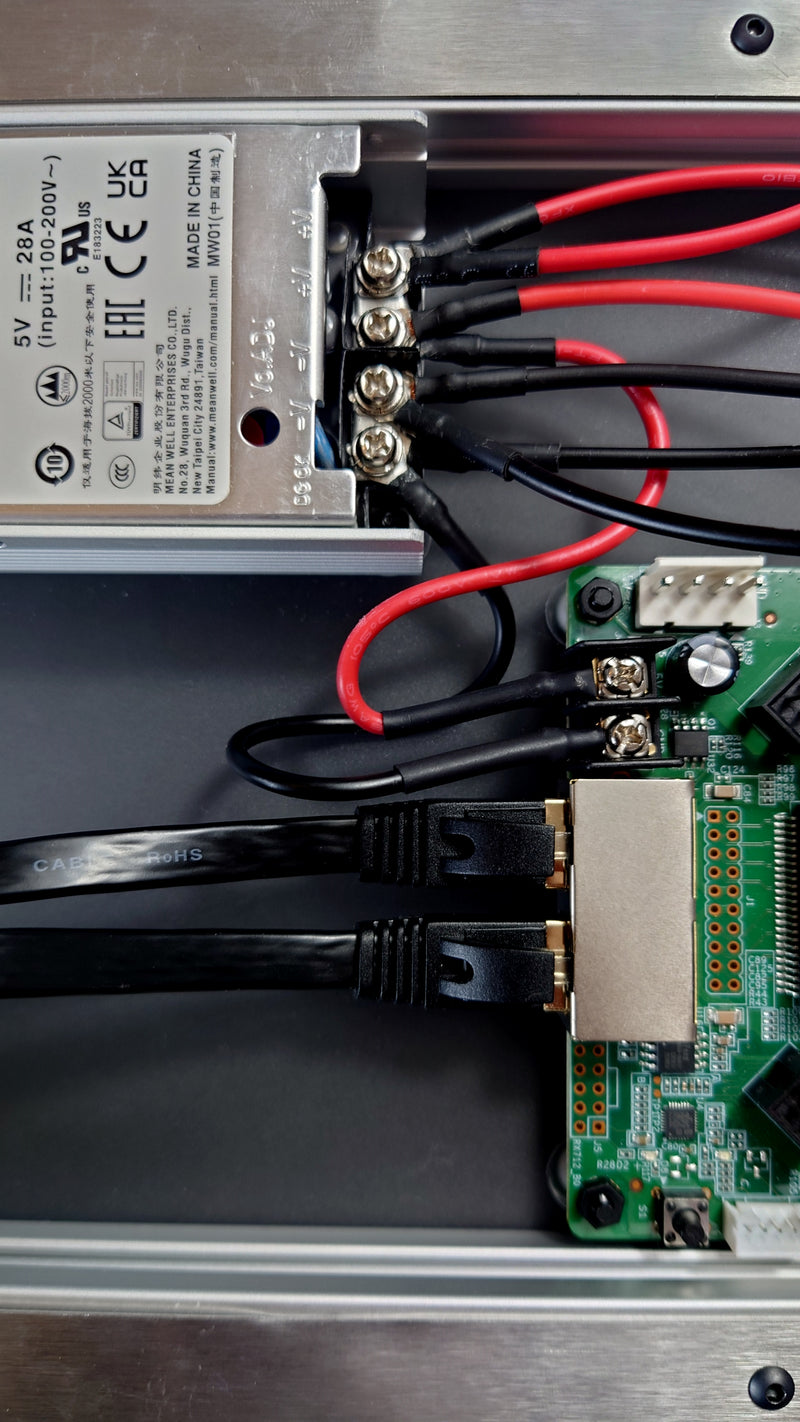

Share the connection points as evenly as possible between the wires, ensuring the positive and negative sides are completely isolated from one another.

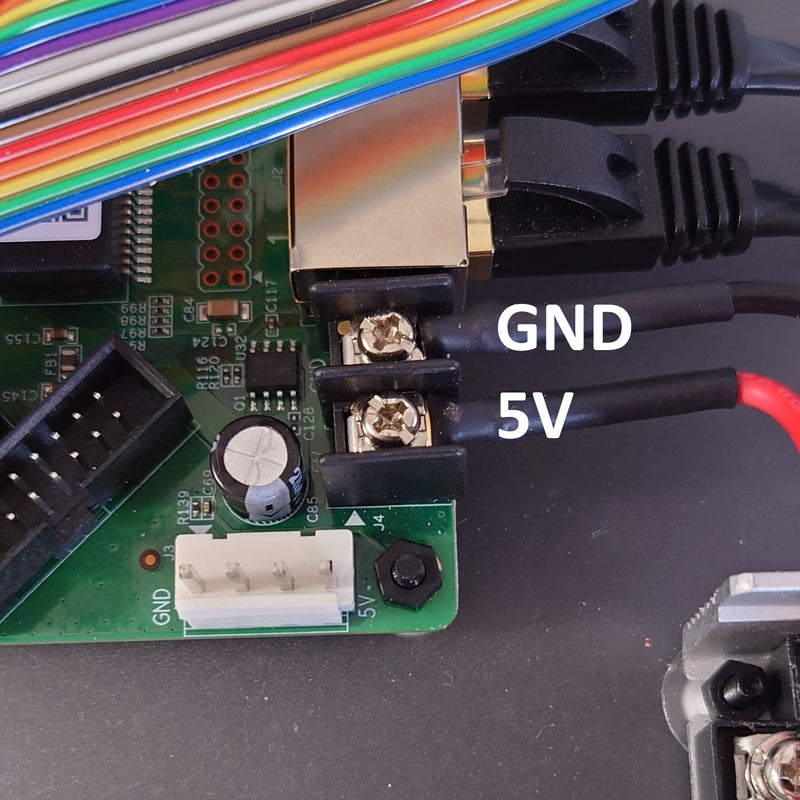

Attach C08 wires to receiving card. Red to 5V / Black to GND
Tighten all screws to firmly secure the wires in place.
