Step 3 : Attach cross bars to side bars

Adding the frame sides to the cross bars

Required

Parts

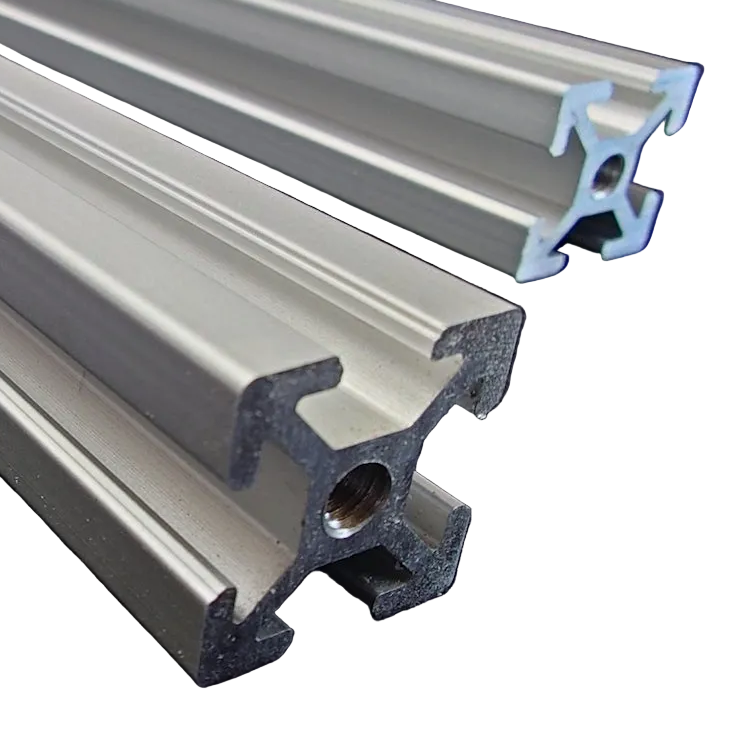

  • 960mm 2020 extruded aluminium profile with tapped ends
    A01 : 960mm 2020 Extruded Aluminium - Tapped Ends2x

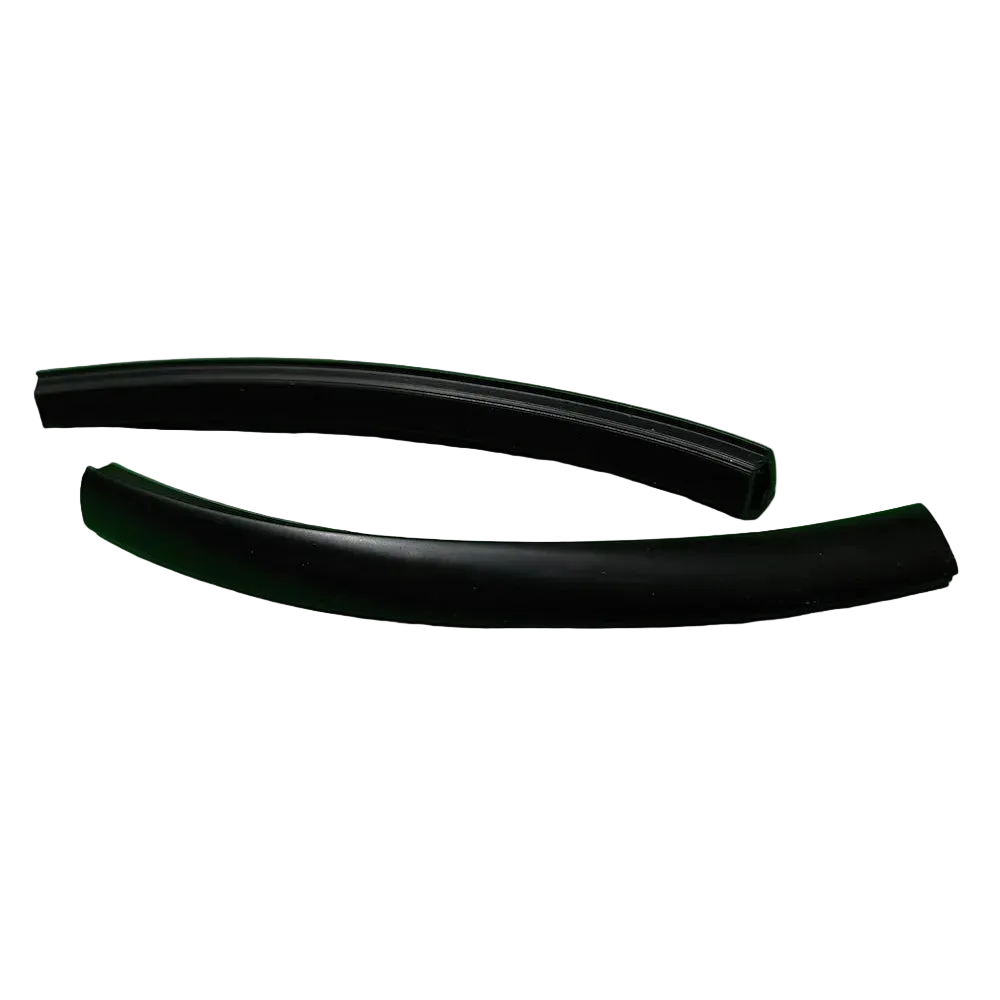

  • 90mm 2020 silicone alignment inserts
    A07 : 90mm Silicone Alignment Insert | 2020 Hardware2x

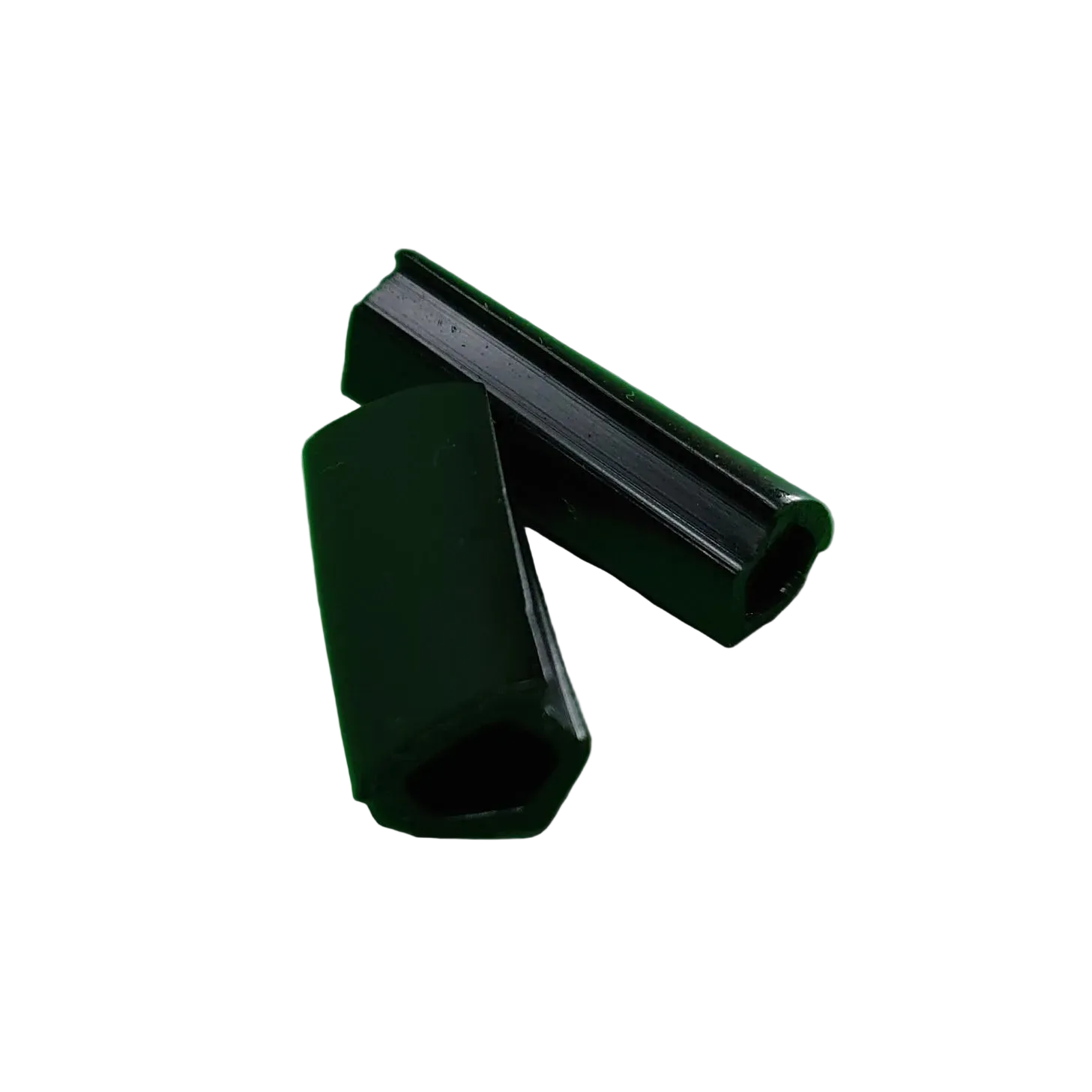

  • 20mm 2020 silicone alignment inserts
    A08 : 20mm Silicone Alignment Insert | 2020 Hardware4x

Tools

  • Screwdriver
    Torx  -  T8
    A Torx bit or Hex Key will work here

Instructions

1 - Slide cross bars onto side bars

Ensure both cross bars on the same side bar tracks, with the L-brackets pointing towards one another and T-nuts on the same side

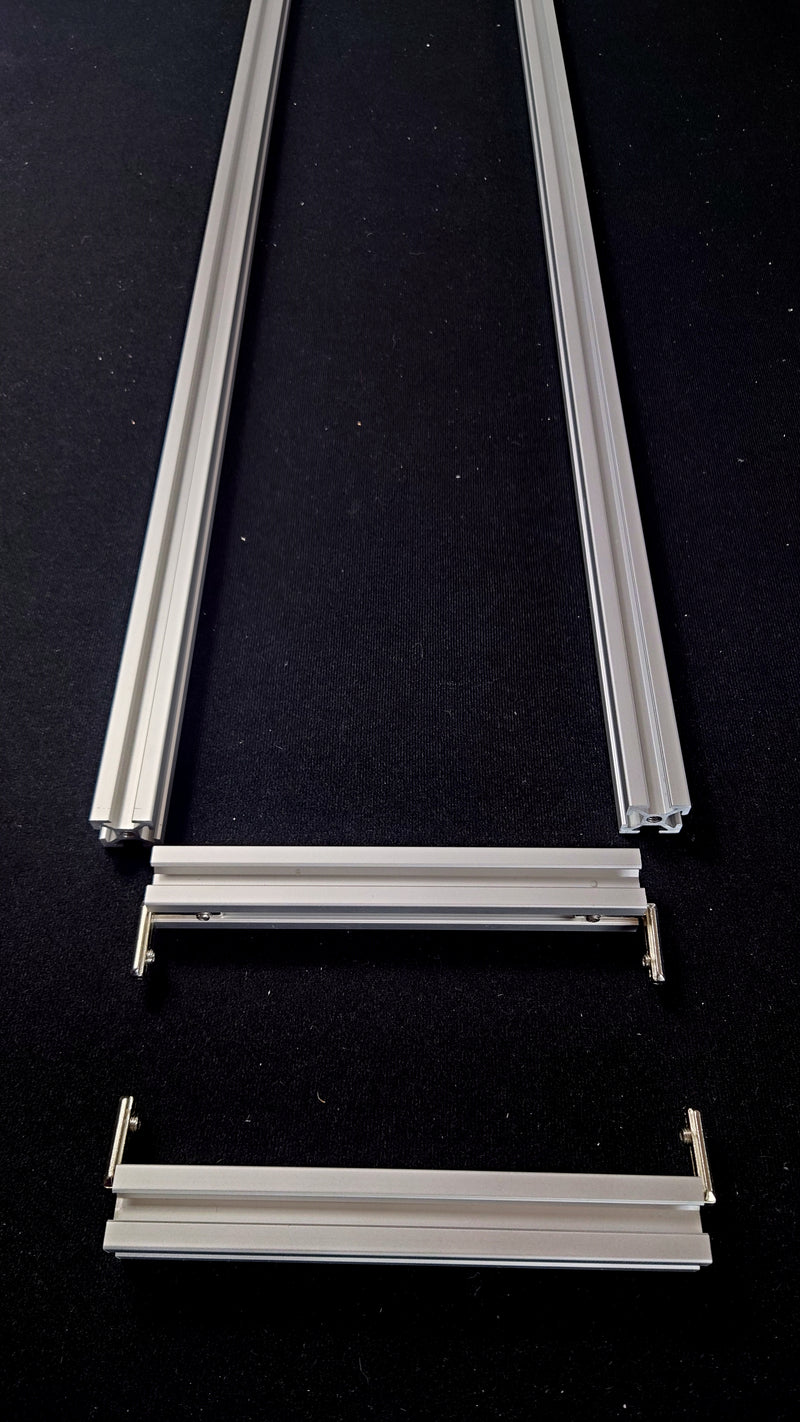

Align cross bars with side bars as shown. T-nuts are not shown in this image but should be facing upwards (see other step images)

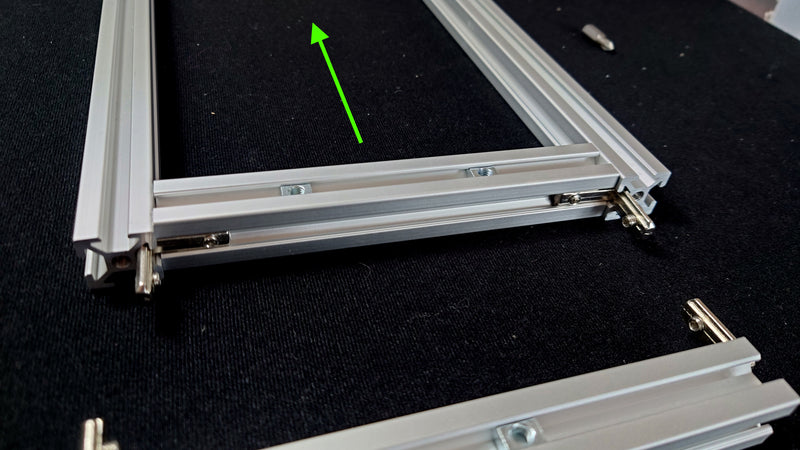

Slide cross bars onto side bars as shown

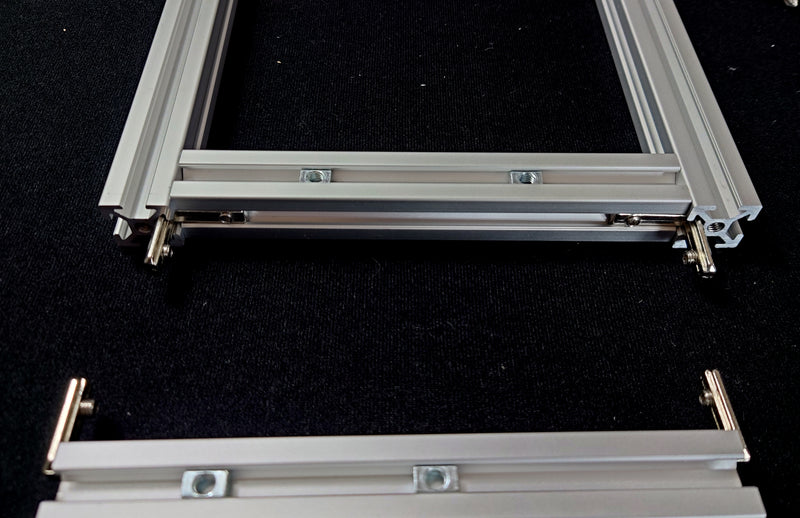

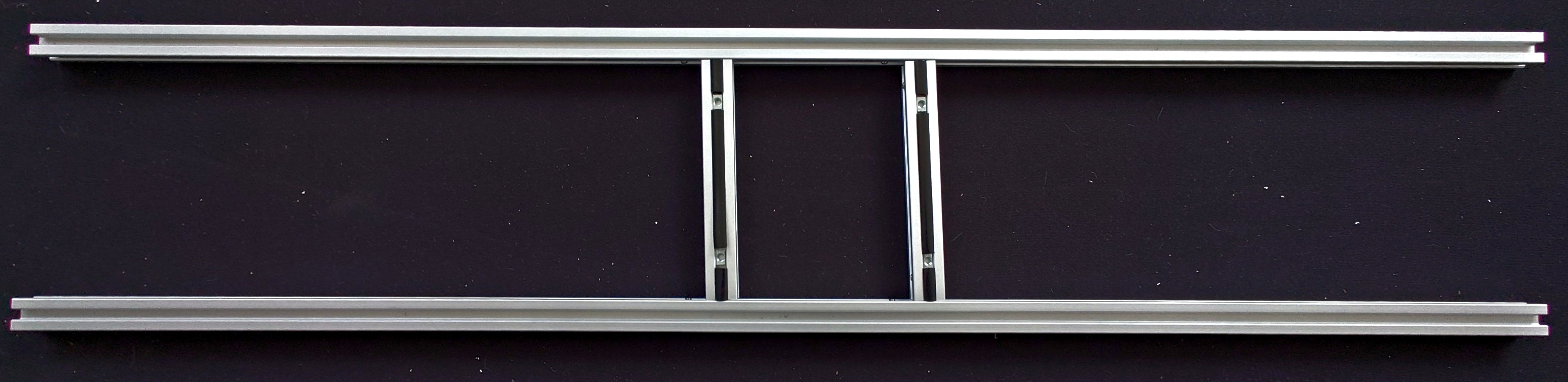

Cross bar with both side bars attached

2 - Tighten the L-brackets so they are flush with the side bars

With the cross bars pushed fully onto the side bars tighten the L-bracket screw as shown in the image to make the cross bar flush with each side bar.
Do NOT tighten the L-bracket screws in the side bar tracks, the cross bars should be able to slide up and down between the side bars.
Using just a bit makes this easier due to the limited space. A hex key will also work.

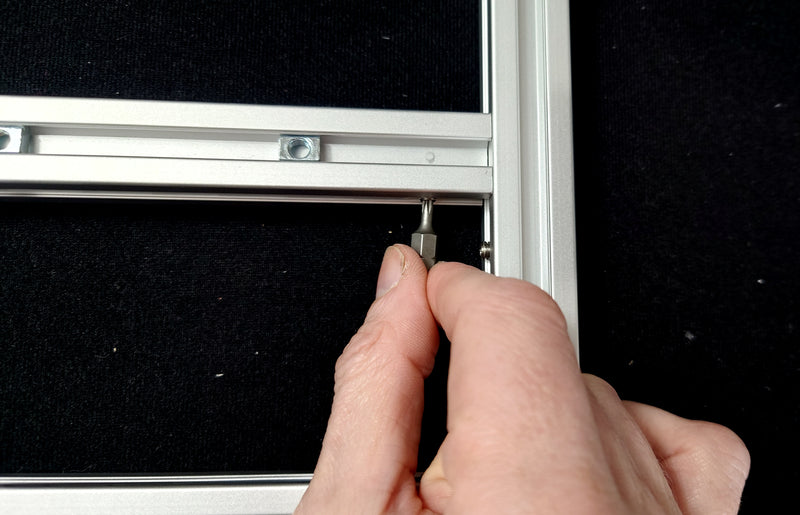

Tighten the L-bracket onto the crossbar so the side bar is flush against the cross bar end

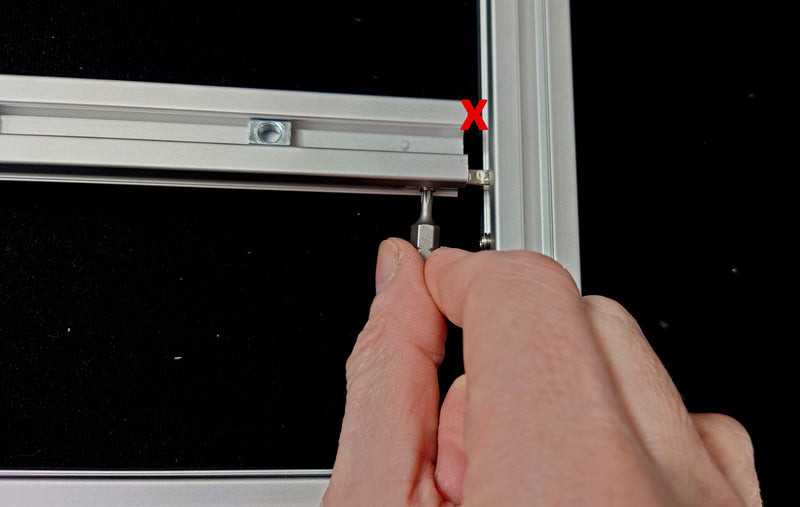

Make sure there is no gap before tightening the L-bracket onto the cross bar

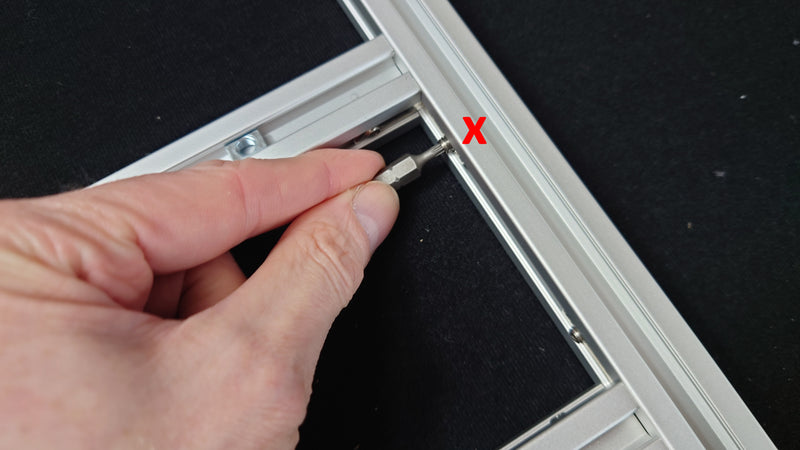

Do NOT tighten the L-bracket onto the side bars yet!

3 - Push the silicone alignment inserts into the cross bar track

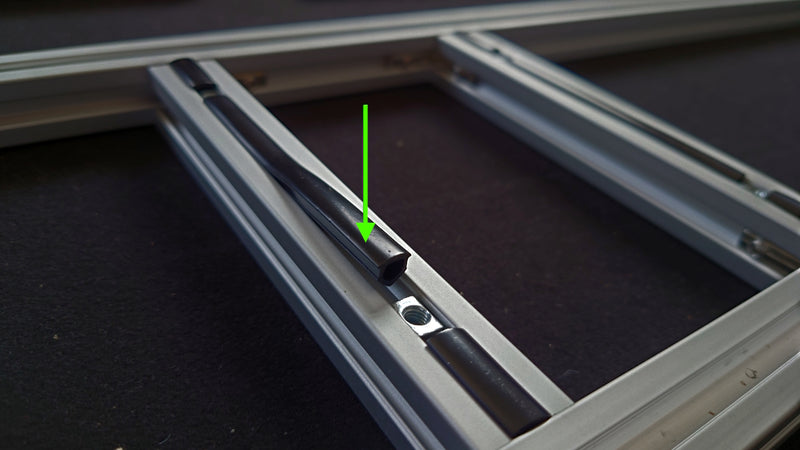

Push the inserts into the cross bar tracks, with the larger insert in the centre, separating the T-nuts.
This is to align the T-nuts for attaching to a VESA mount plate through the panel backplate.

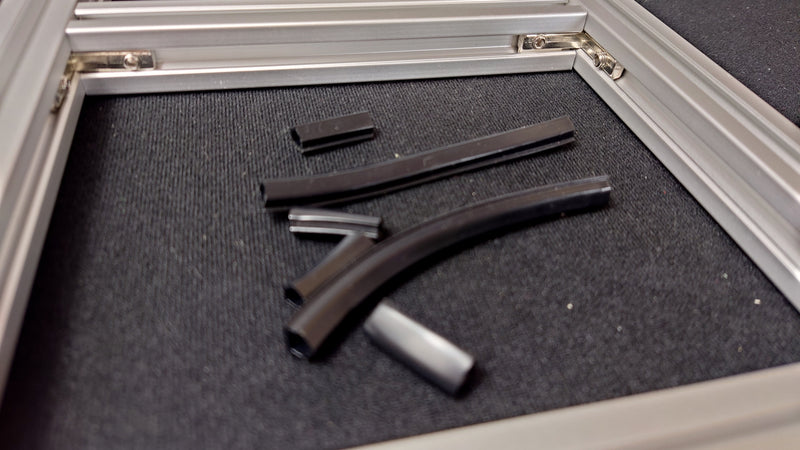

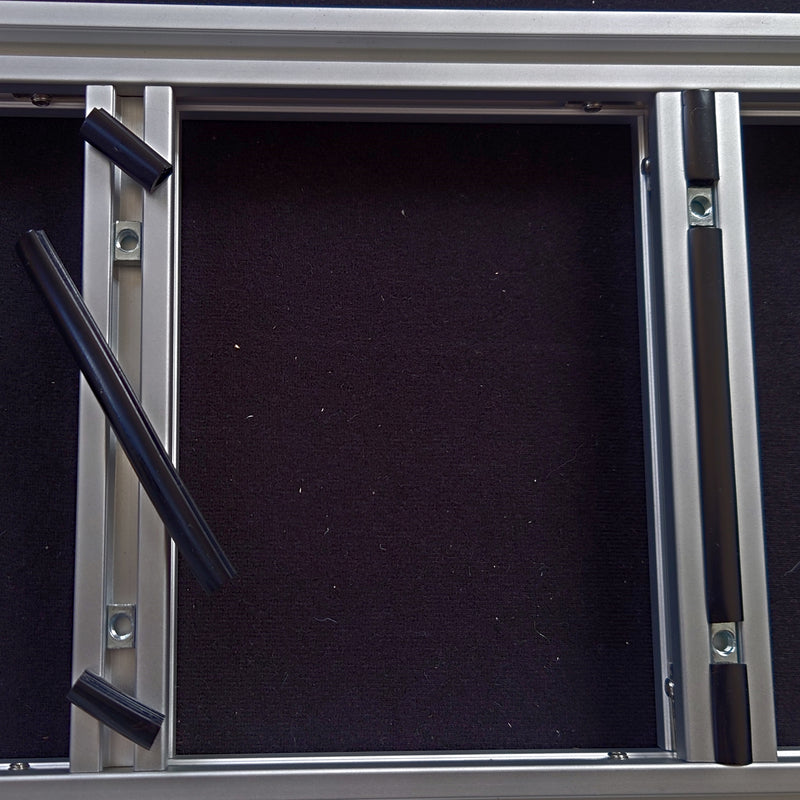

The silicone alignment inserts

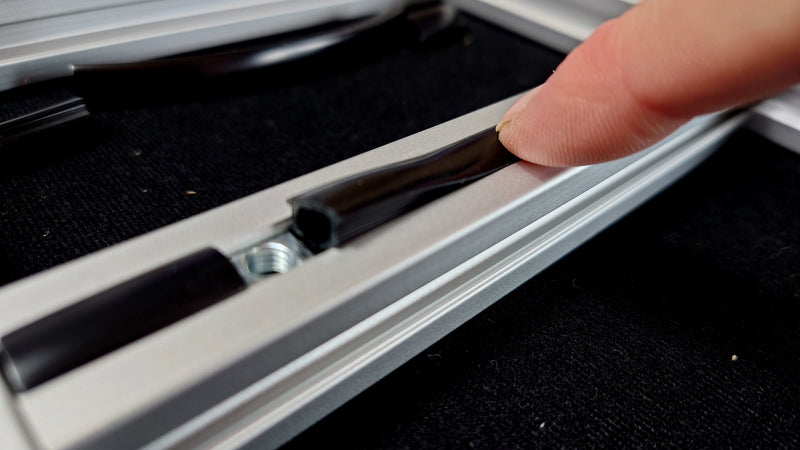

Push the inserts into the cross bar tracks, with the larger insert in the centre, separating the T-nuts.

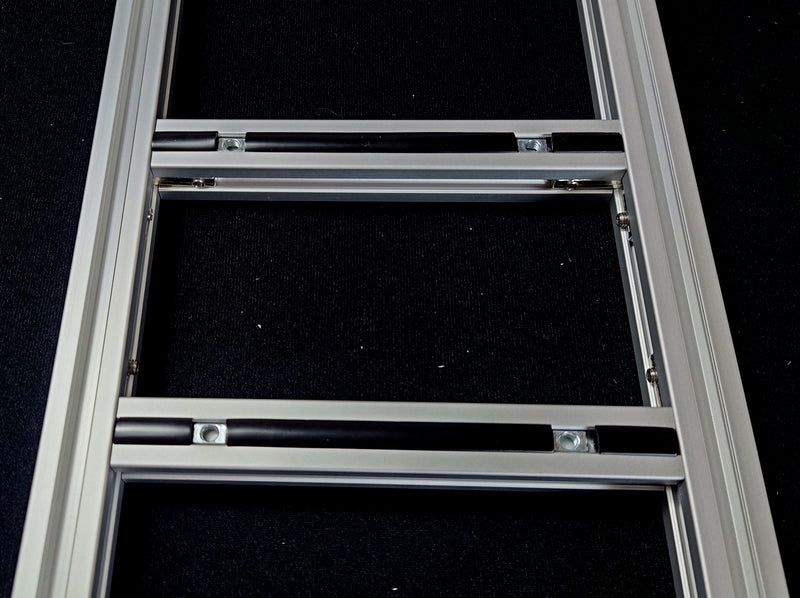

The silicone alignment inserts....inserted!
