Step 5 : Attach metal strips to frame
Required
Parts
-
A06 : 15mm x 956mm x 0.7mm Stainless Steel Strip 4302x -
D02 : M3 T-Nuts | 2020 Hardware10x -
D04 : 8mm Round Head Screws | M310x
Tools
-
ScrewdriverTorx - T8A Torx bit or Hex Key will work here
Instructions
1 - Slide T-nuts onto side bar track and insert screws
!
Be careful handling these metal strips, they can have sharp edges
!

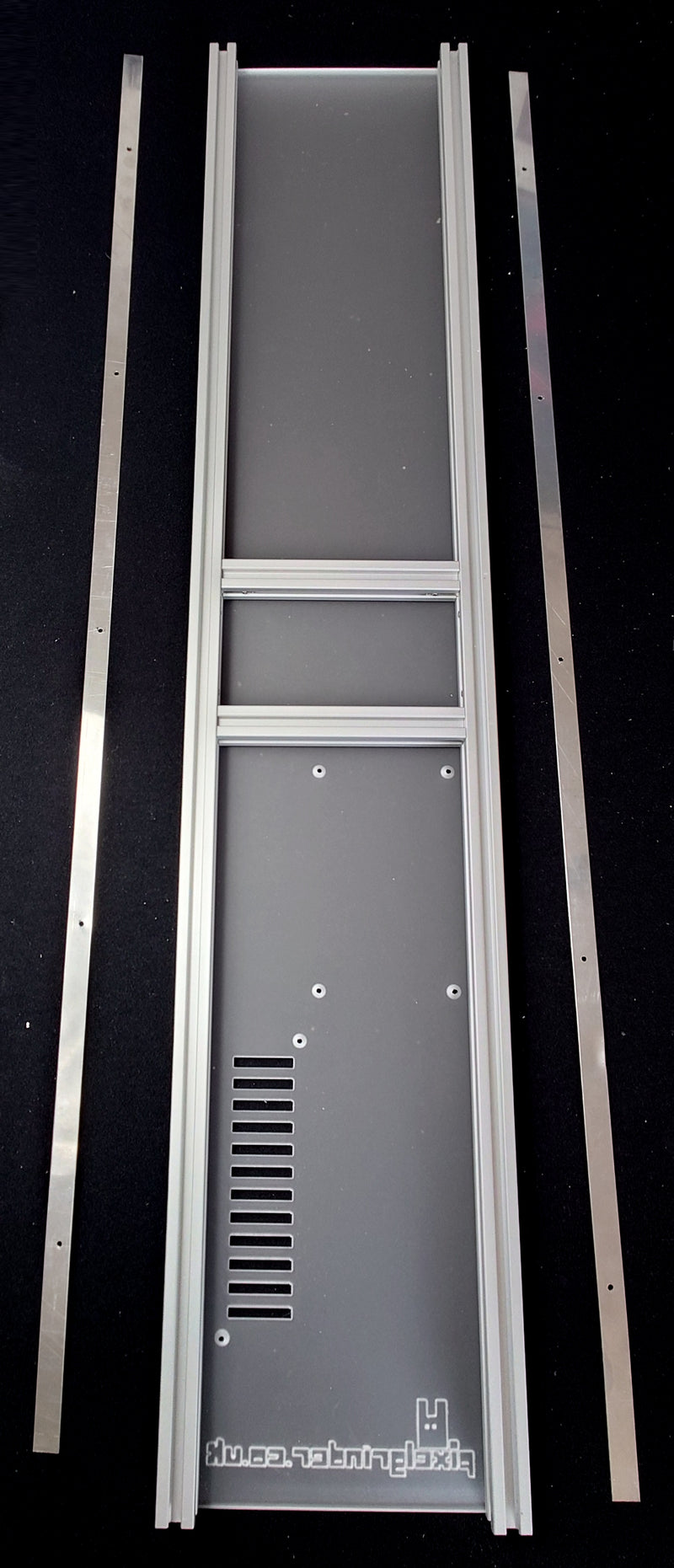

Turn the frame over.
This is the same process as attaching the back plate.
Slide 5x T-nuts up each side bar track on the opposite side to the back plate.

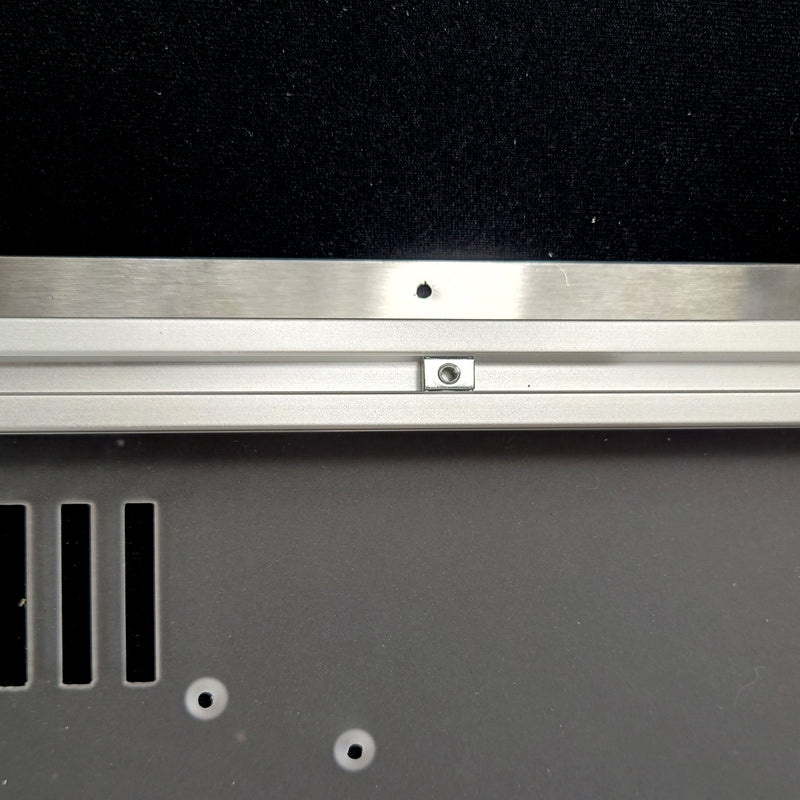

Use the stainless steel strip to align the T-nuts with their corresponding drilled holes.

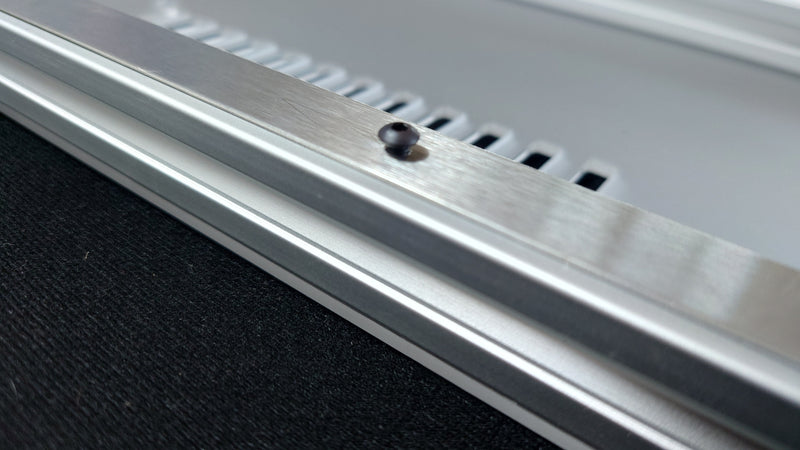

Attach strips to frame loosely using the round head screws.
The stainless steel strips are often a bit wangy before they are secured to the frame!
1 / 1
2 - Align the strips and secure to frame

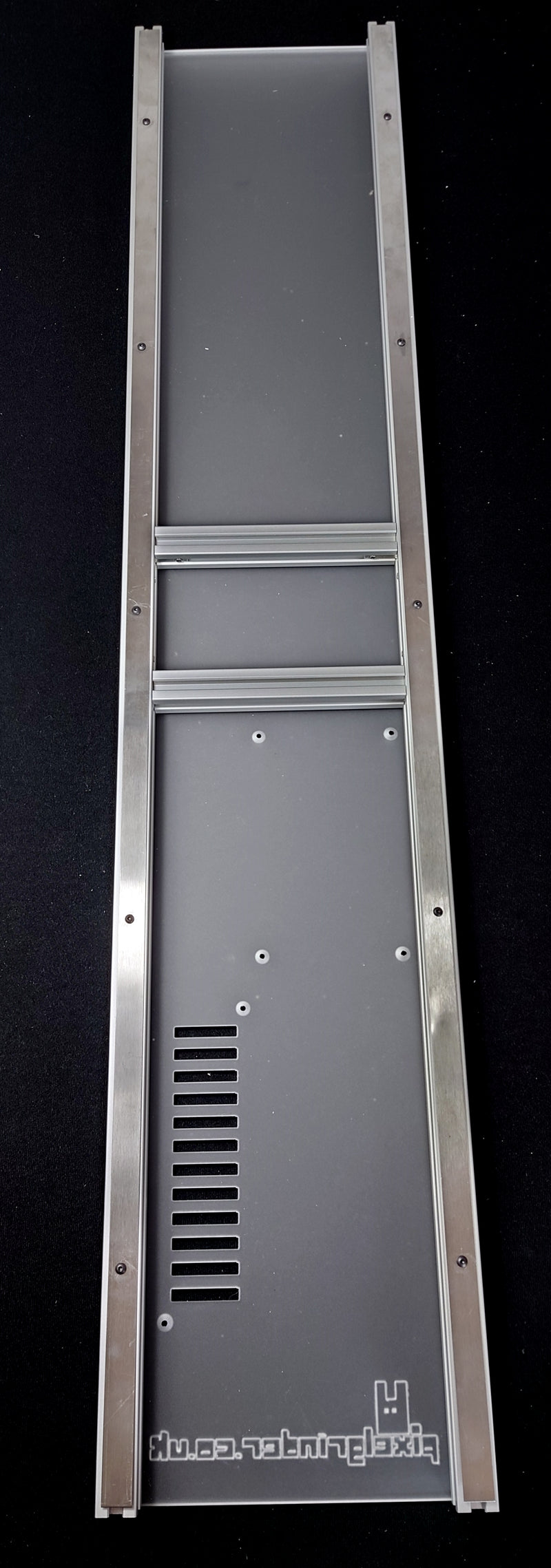

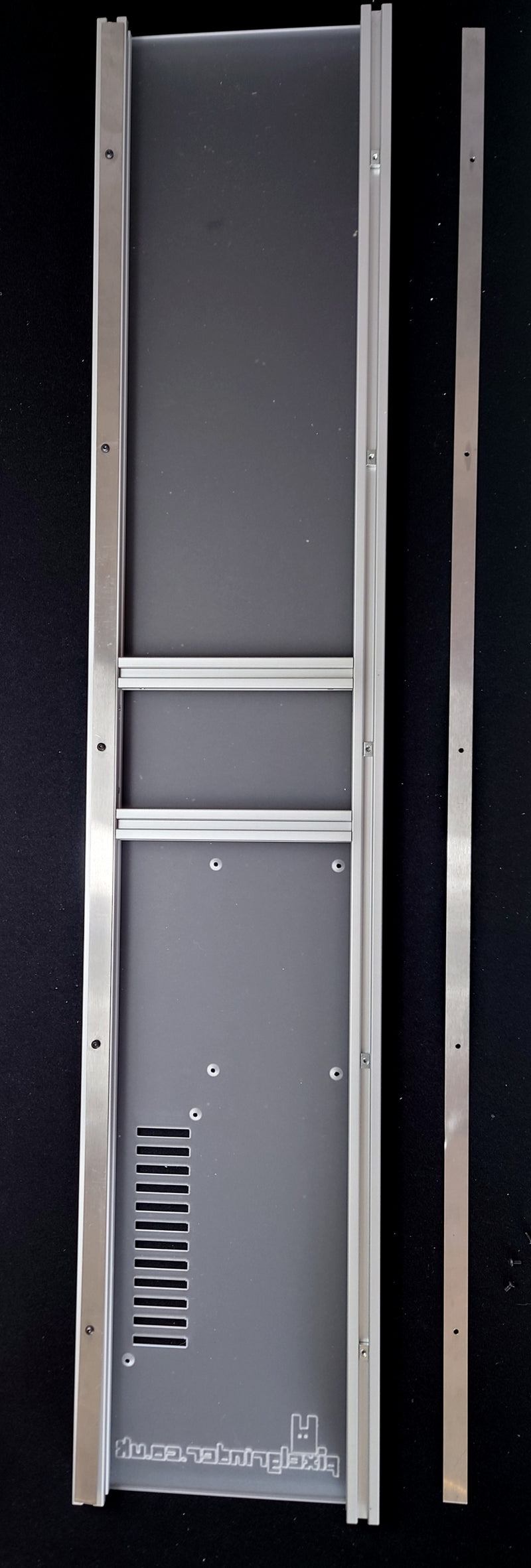

Centre the stainless steel strips, leaving roughly equal space at either end of the frame.

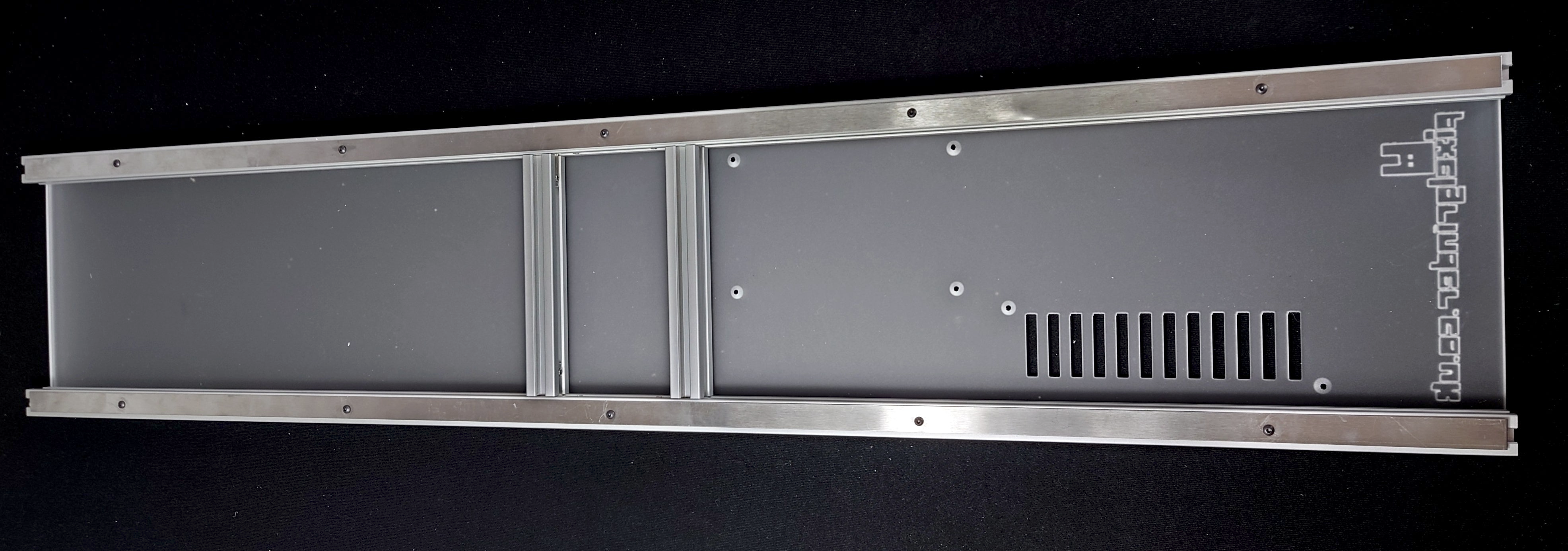

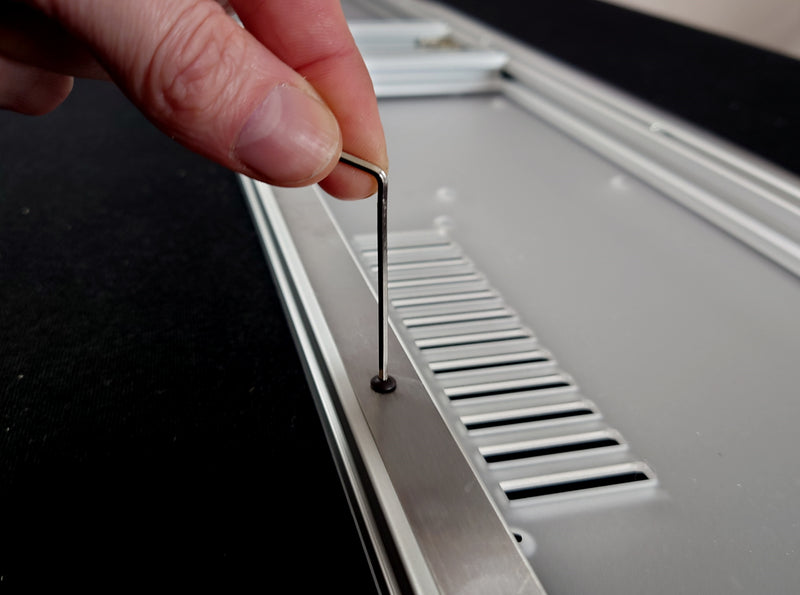

Tighten the screws to secure the stainless steel strips to the frame.
1 / 1
