Step 10 : Connect up the internal data and RJ45 cables

Connecting the receiving card to the RJ5 ports and attaching the internal data cables that will drive the LED modules

Required

Parts

  • RJ45 network cable 150mm
    B04 : 150mm RJ45 Network Cable2x
  • 16 core ribbon data cable IDC connectors
    B05 : 530mm Data Cable | 16 Core Ribbon1x
  • 16 core ribbon data cable IDC connectors
    B06 : 380mm Data Cable | 16 Core Ribbon1x
  • 16 core ribbon data cable IDC connectors
    B08 : 230mm Data Cable | 16 Core Ribbon1x
  • 16 core ribbon data cable IDC connectors
    B07 : 340mm Data Cable | 16 Core Ribbon1x
  • 16 core ribbon data cable IDC connectors
    B09 : 200mm Data Cable | 16 Core Ribbon1x

Tools

  • Screwdriver
    Phillips Head

Instructions

1 - Connect RJ45 ports to receiving card

Connect 1 end of each RJ45 cable to the internal side of the RJ45 sockets on the base plate.
Connect the other ends to the corresponding receiving card RJ45 sockets as shown.

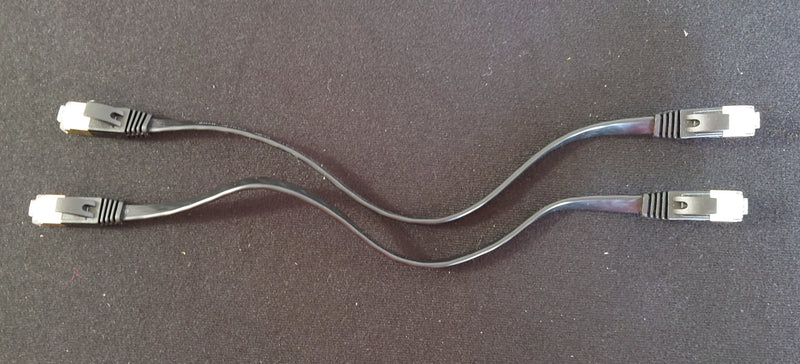

Internal RJ45 cables

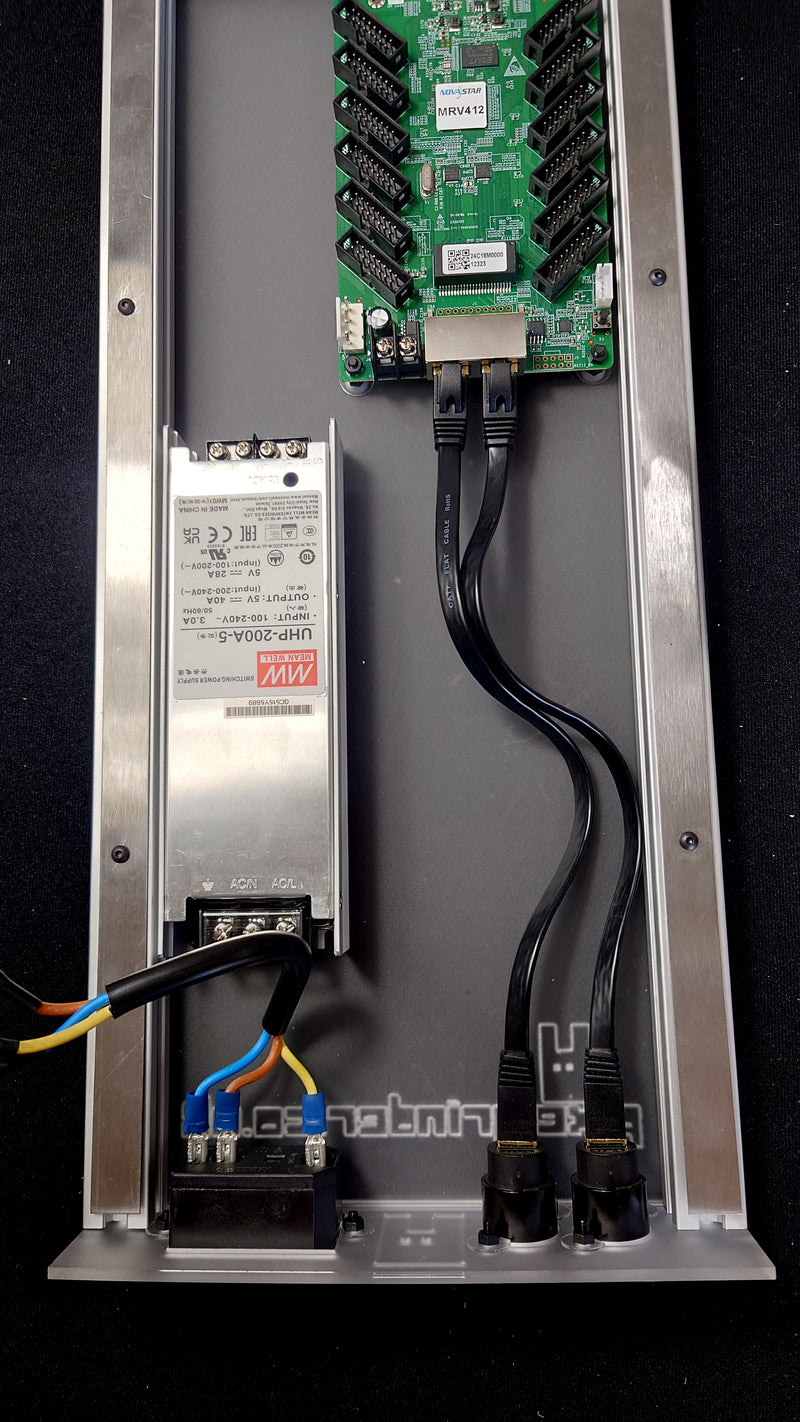

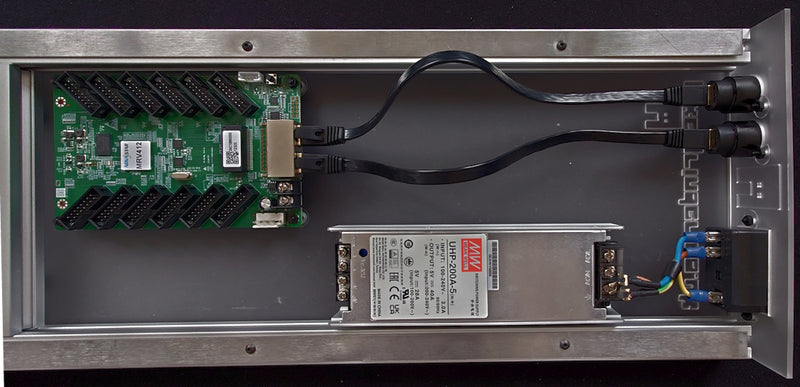

Internal RJ45 cables connected

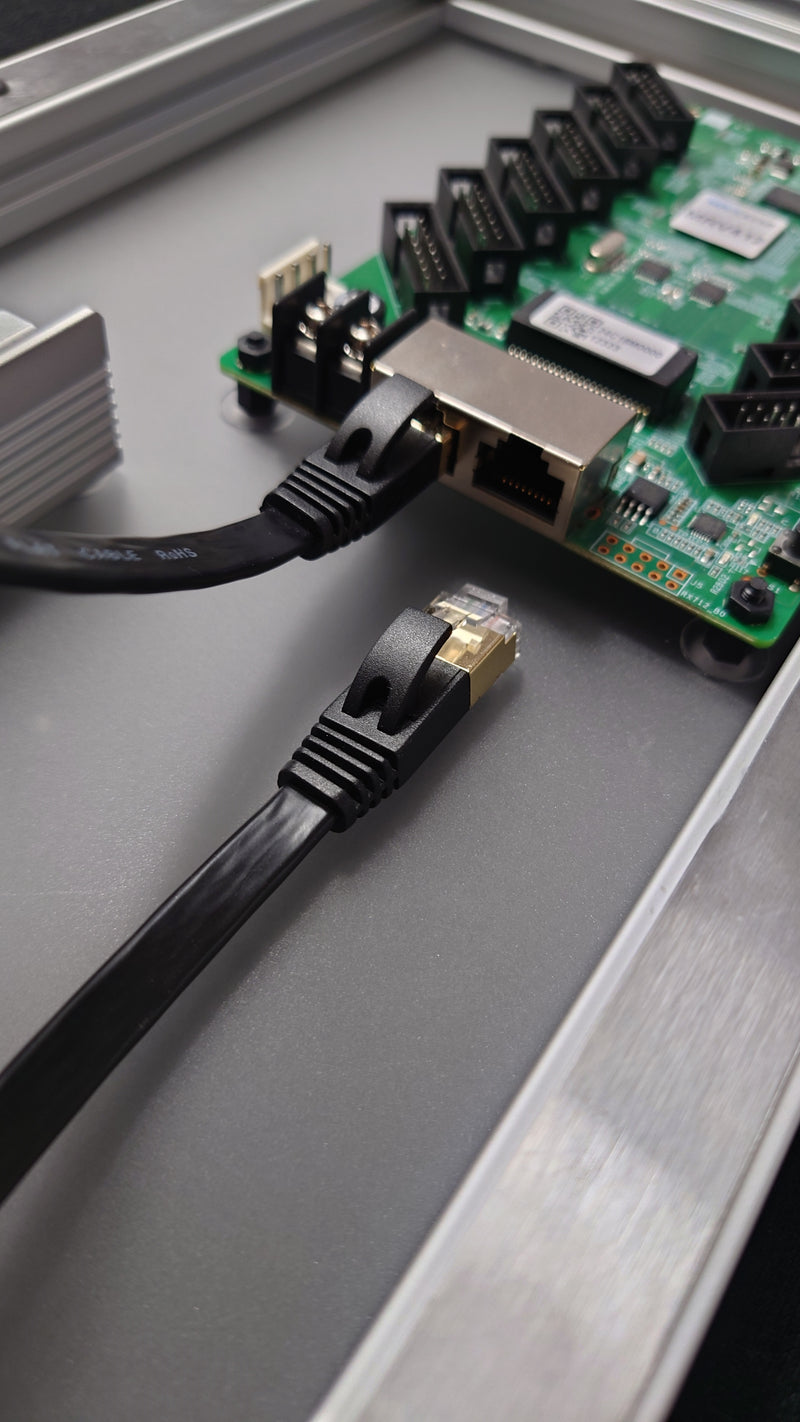

Connecting the internal RJ45 cables to the receiving card

2 - Attach ribbon cables to receiving card

Ensure the correct cables are connected to the correct ports
Port > Cable
JH1 > B06
JH2 > B07
JH3 > B10
JH4 > B09
JH5 > B08

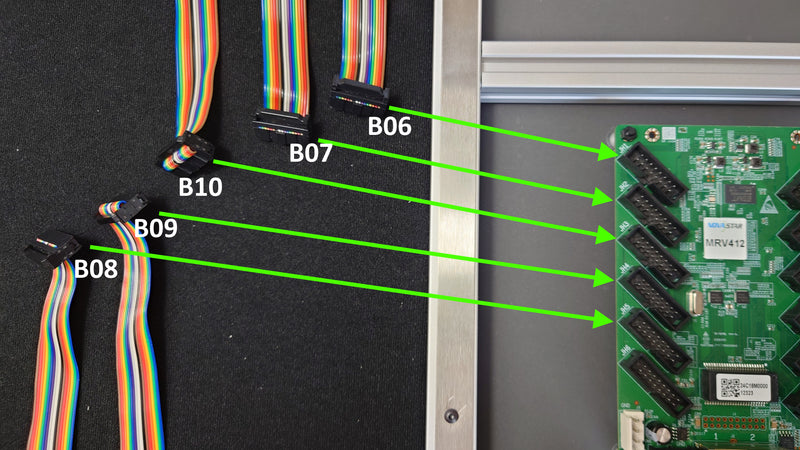

Connecting the data cables to the receiving card

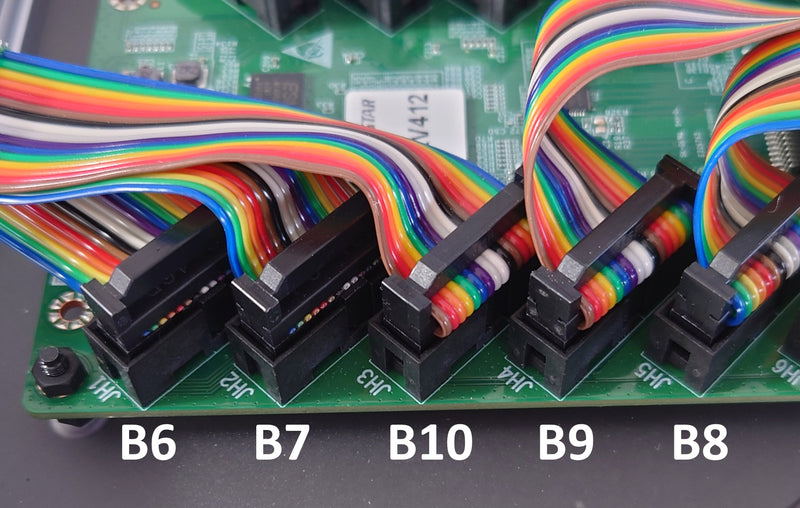

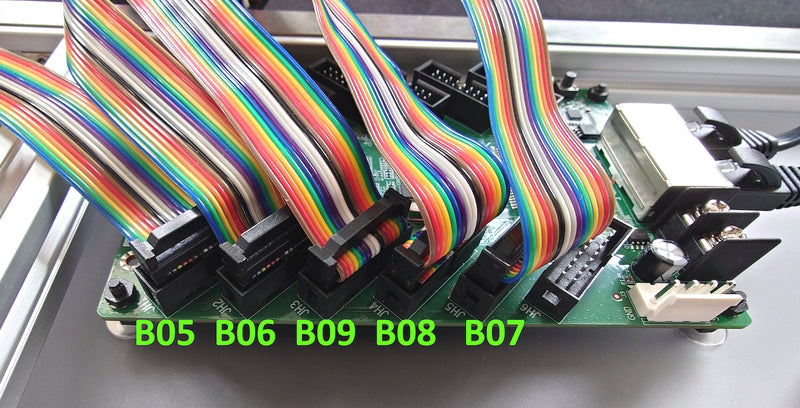

Data cables connected to the receiving card

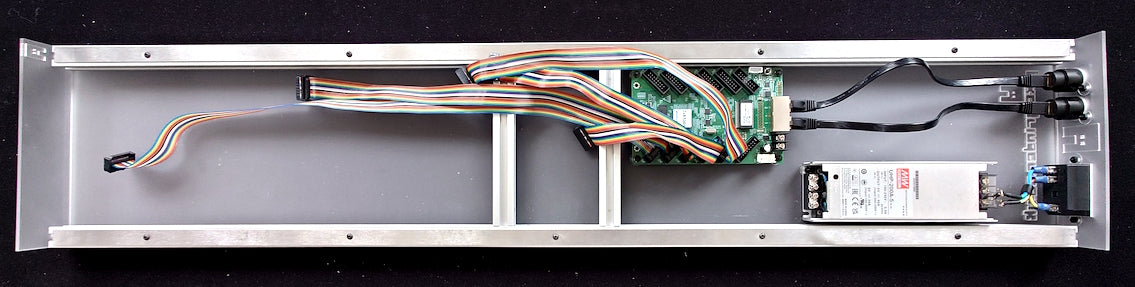

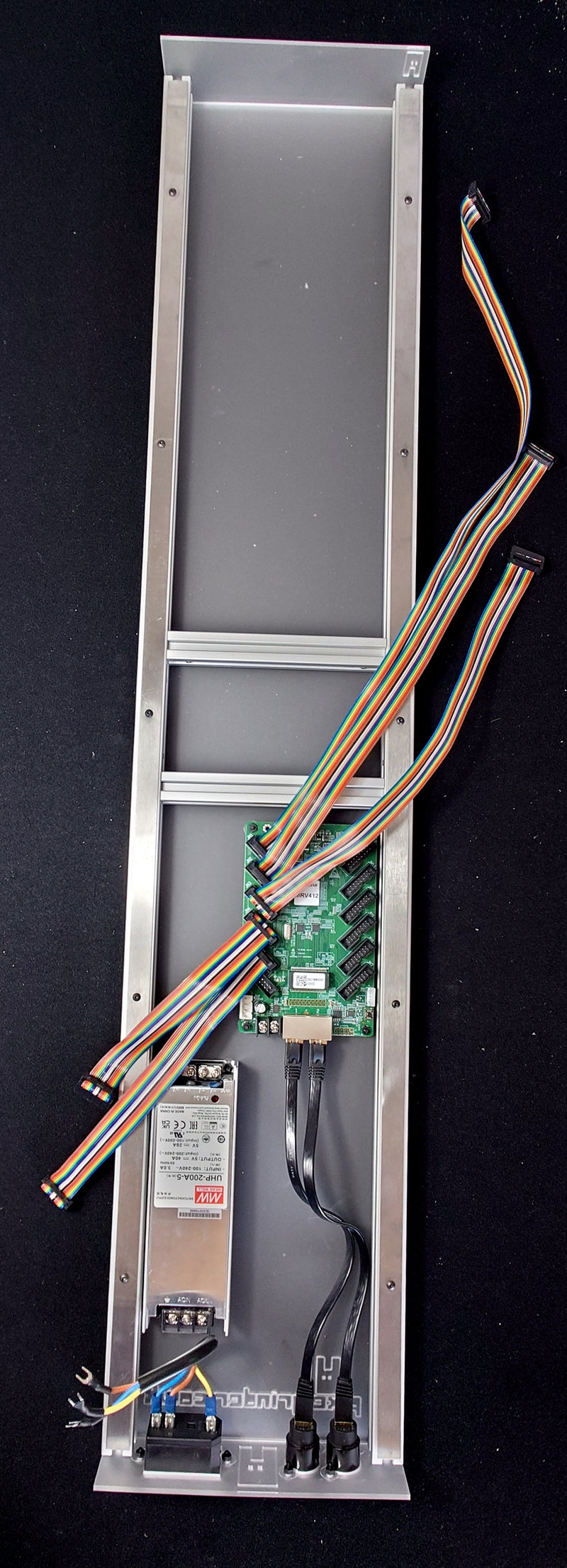

Receiving card with data cables connected
